Módulo de visualización LED curvado P1.25 P1.56 P1.86 Pantalla de módulo LED suave para un gran centro comercial

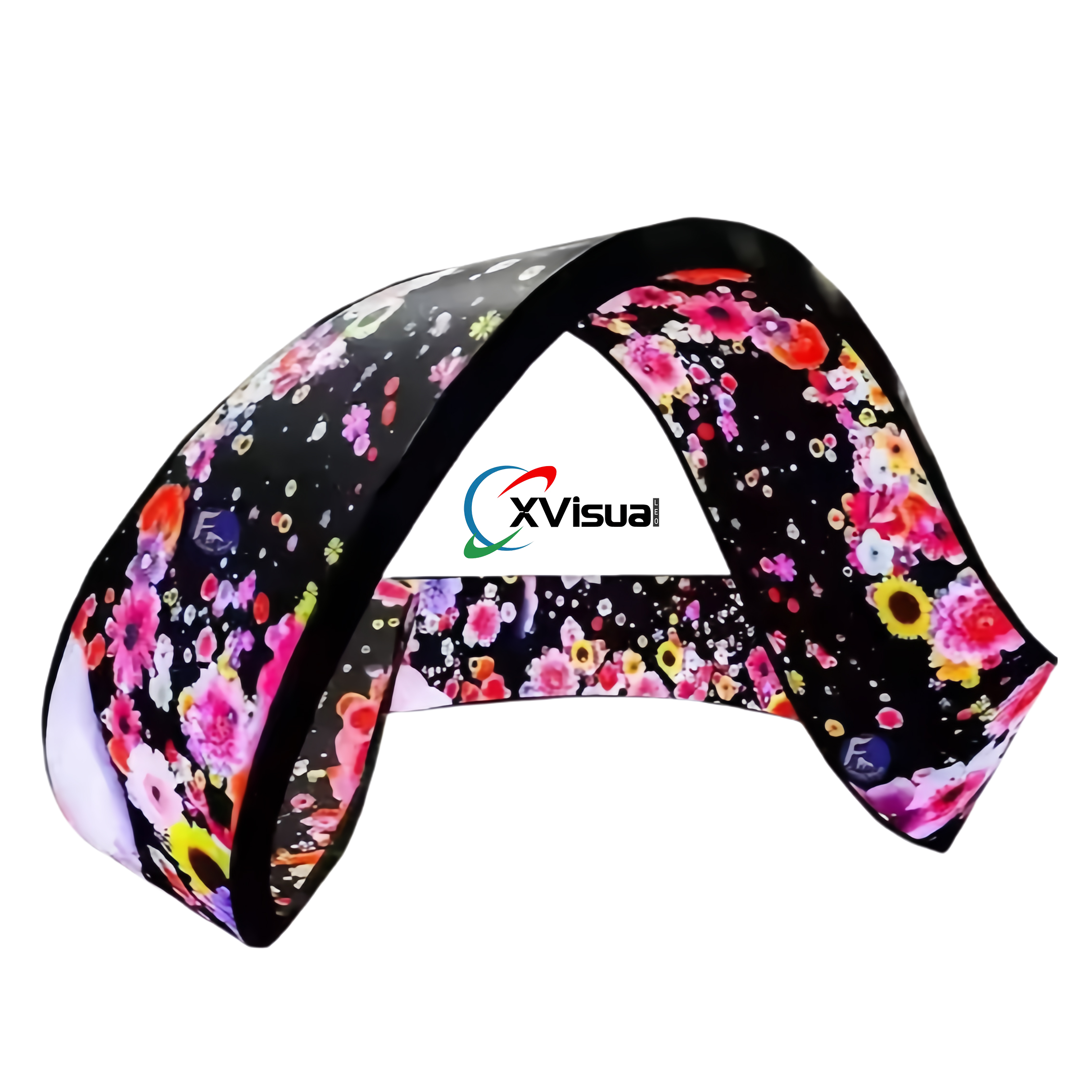

Extremely flexible

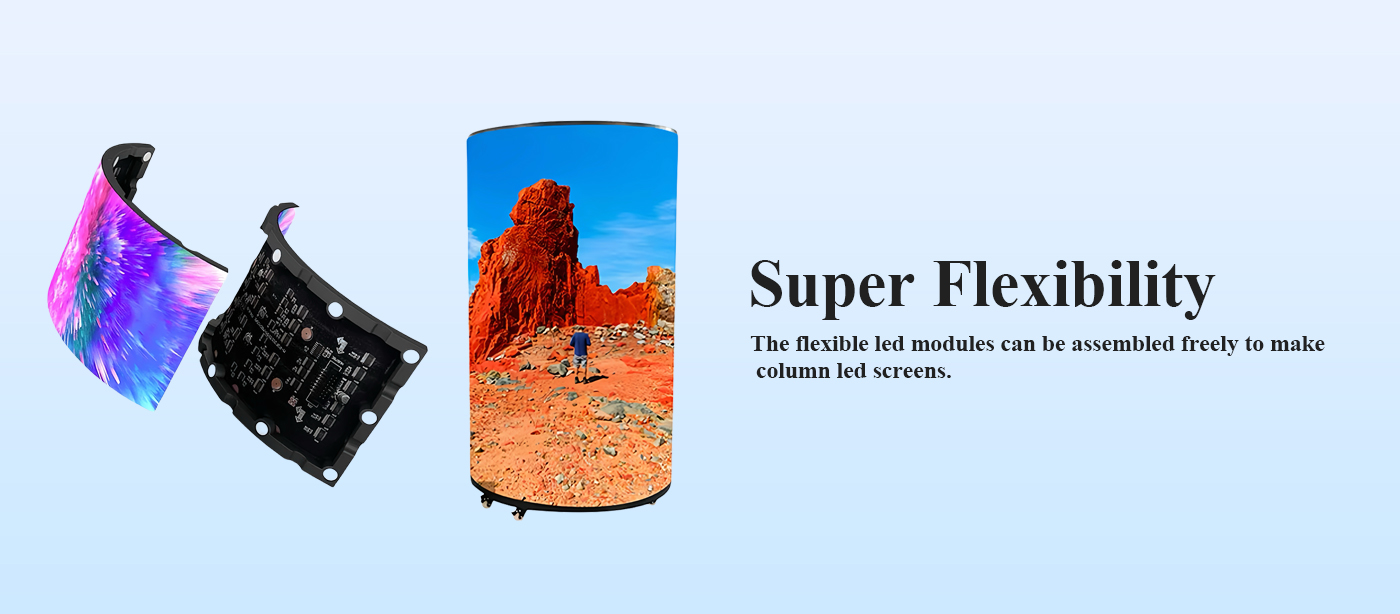

soft led module display screen could be made as any creative shapes for any installation site.
Curved led display module with Super light&Delgado
Only 7kg/sqm,75mm thickness,save labor costs and shipping costs!
soft led module display screen Quick install

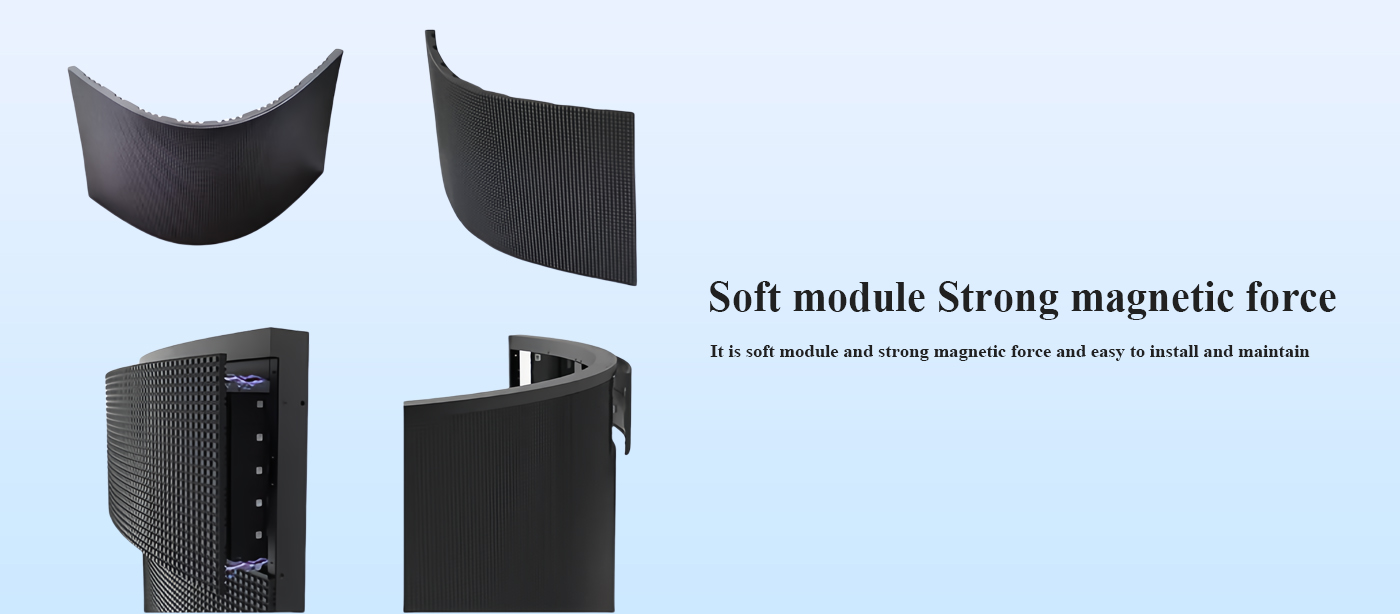

Assembling by soft led module display screen directly,no steel cabinet design,front maintenance ,both magnet and screw connecting available.
Stable
Using high quality raw materials only,showing the suprior visual effect
Speficación de productos
| Modelo | XICP1.25 | XICP1.86 | XICP2 | XICP2.5 | XICP3 | XICP4 |
| Densidad de píxeles (dots/m2) | P1.25 | P1.8 | P2 | P2.5 | P3 | P4 |
| Lamp Specifications | SMD1010 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Densidad de píxeles (dots/m2) | 640000 | 284444 | 250000 | 160000 | 111111 | 62500 |
| Tamaño del módulo (mm) | 240*120mm/320*160mm | |||||
| Resolución del módulo | 192*96 256*128 | 128*64/172*86 | 120860/160*80 | 96*48/128*64 | 80*40 | 60*30/80*40 |
| Actualización | 3840Hz | |||||
| Escala de grises (bits) | 14bit-18bit | |||||
| Signal Interface Mode | Hub 75 | |||||
| Module Base Shell Material | Silicone soft bottom shell | |||||
| Luminance cd/m2 | 600-1000 | |||||
| Power Supply | AC110-240V | |||||
| Lifetime | 100000 horas | |||||
