IP65 Full Color 50% 80% Transparency Curtain Outdoor LED Display Screen Film Glass transparent led display

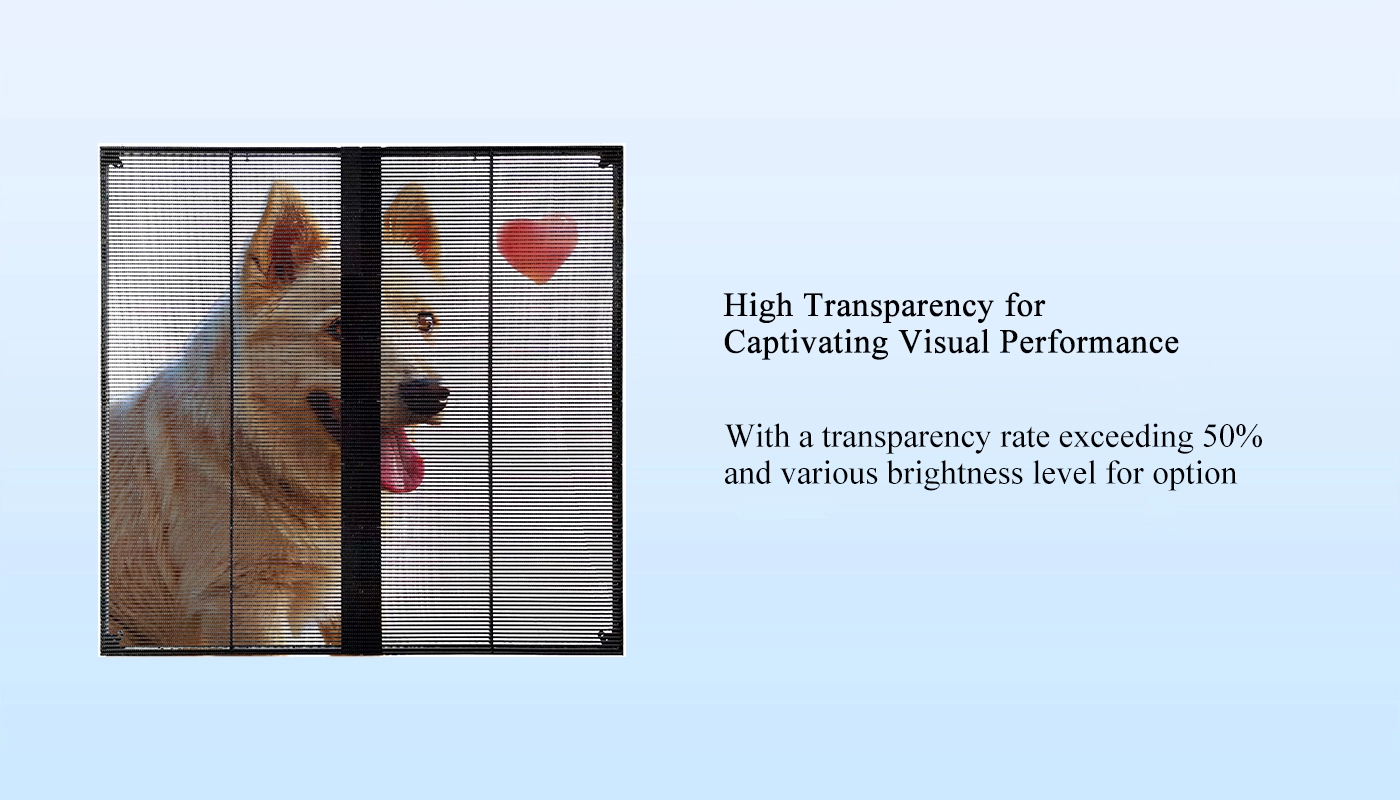

Glass transparent led display with High transparency
It has up to 80% transparency, maintaining the see-through function of the glass
The higher transparency effect allows you to see the LED light on the glass with.
out any impact on the surrounding of the glass wall.
Glass transparent led display with Ultra-high transmittance
80% light transmittance, the background is clearly visible.
Glass transparent led display with High refresh, high grayscale, high contrast.
Brilliant picture, excellent visual effect.
Speficación de productos
| Modelo | XTI2.6 | XTI3.9 | XTI5.2 | XTI10.4 |
| Píxel(mm) | 2.6-6.9 | 3.9-7.8 | 5.2-10.4 | 10.4-10.4 |
| Densidad de píxeles(píxeles/㎡) | 55,296 | 32,768 | 18,432 | 9,216 |
| Tipo LED | SMD1212 | SMD1717 | SMD2020 | SMD2020 |
| Tamaño del módulo(W*H) | 500*125mm | |||
| Resolución del módulo(W*H) | 192*18 dotas | 128*16 dotas | 96*12 dotas | 48*12 dotas |
| Tamaño del panel(W*H) | 1000*500/1000*1000mm | |||
| Resolución del módulo(W*H) | 384*72/384*144 dotas | 256*64/256*128 dotas | 192*48/192*96 dotas | 96*48/96*96 dotas |
| Transparency Ratio | 45% | 65% | 60% | 60% |

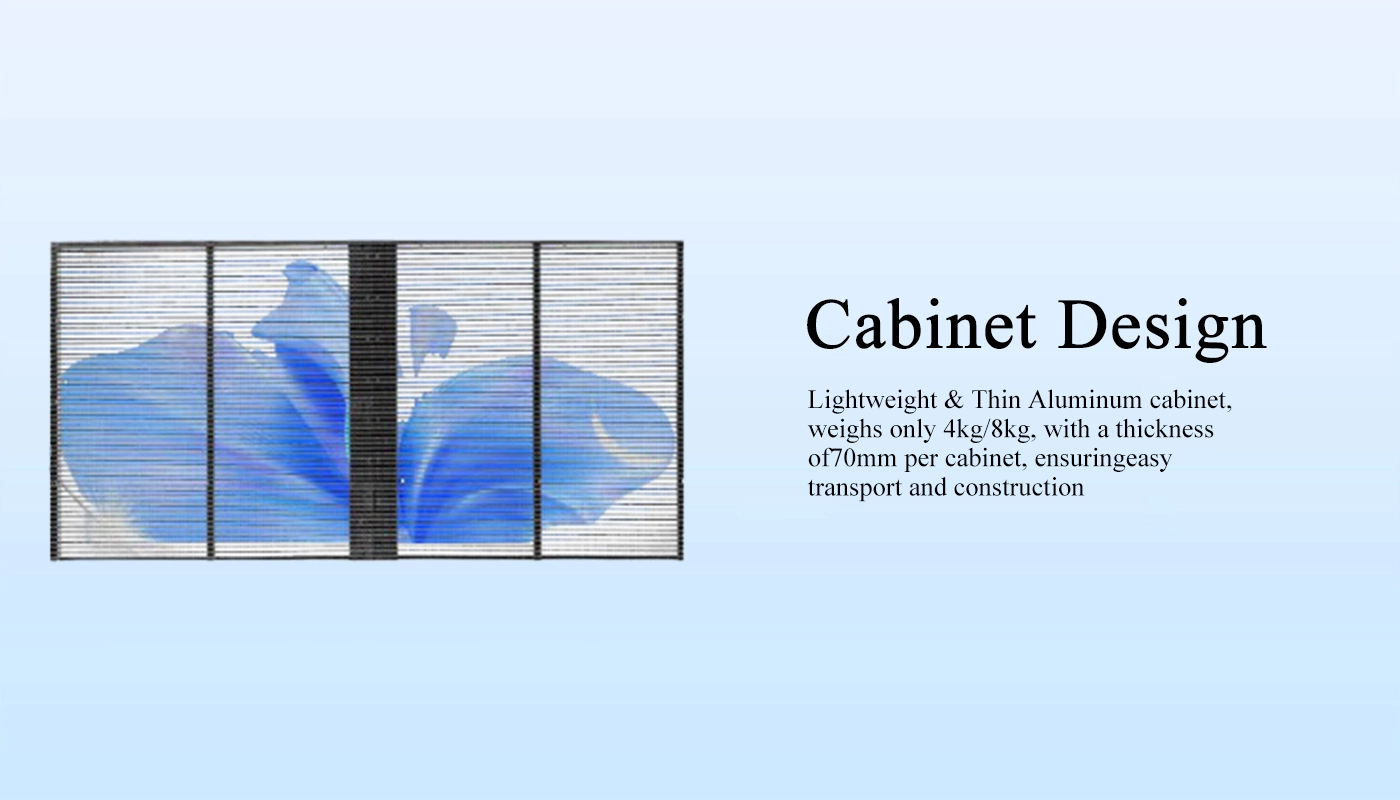

| Peso del panel(kg) | 4/8kg | |||
| Voltaje de entrada | AC 100-240V | |||
| Brillo(CD/㎡) | 800～5000 | |||
| Ajuste de brillo | Programable/automático/manual | |||
| Ángulo de visión(H/V) | 140°/140 ° | |||
| Escala de grises(poco) | 13/14 | |||
| Actualización(Hz) | 3840/7680 | |||
| Relación de contraste | 7000:1 | |||
| Temperatura del color(K) | 2000-10000 (Ajustable) | |||
| Max/AVG. Consumo de energía(w/㎡) | 600/200 | |||
| Utilidad | Delantero/trasero | |||
| Calificación IP | IP30 | |||
| Temperatura de funcionamiento | -30～50℃ | |||
| Humedad operativa(RH) | 10%～80% | |||
| La vida laboral(Horas) | 100000 | |||
