LED Video Wall Outdoor Waterproof IP66 Full-Color P1.95/2.604/P2.97/3.91 LED Display Screen For LED display Advertising
🎥 Nakedeye 3D LED Screen – Transforming Digital Visuals into Reality
Step into a new dimension of visual communication with the naked eye 3D LED screen. Designed to deliver powerful, lifelike content without the need for special glasses, this screen creates an immersive experience that stuns viewers and elevates any space it’s installed in—perfect for high-end advertising, entertainment venues, exposiciones, and architectural façades.
🔍 Multiple Pixel Pitch Options
Available in P1.56, P1.95, P2.64, P2.97, y P3.91, el naked-eye 3D LED screen offers various pixel pitch configurations to meet different clarity and distance requirements. Whether used for indoor close-range viewing or large outdoor installations, the image quality is consistently sharp and dynamic.

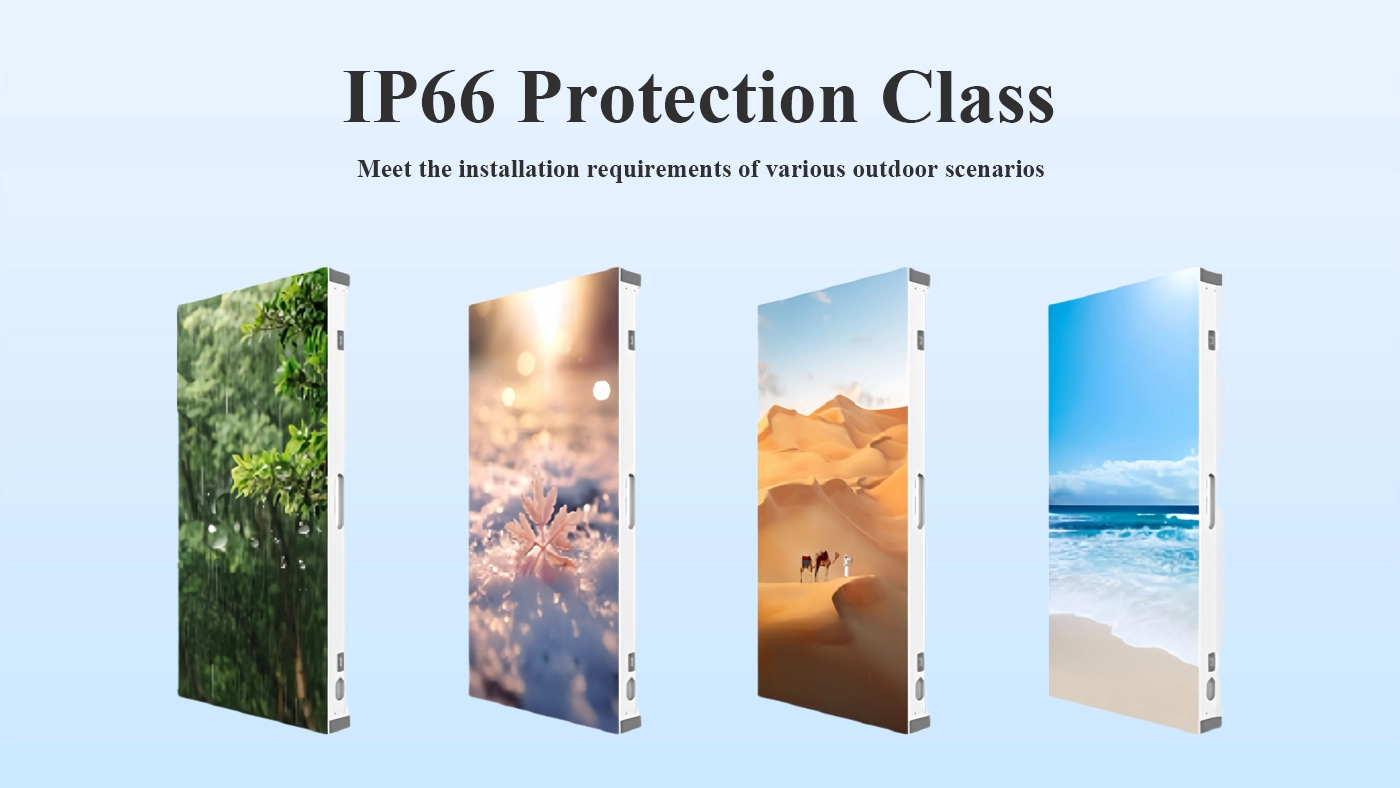

🛡️ Built for Outdoor Durability – IP66 Protection
With an Clase de protección IP66, este naked-eye 3D LED screen is dust-tight and waterproof, making it ideal for both indoor and outdoor environments. It can withstand challenging weather conditions while maintaining superior performance and image integrity.

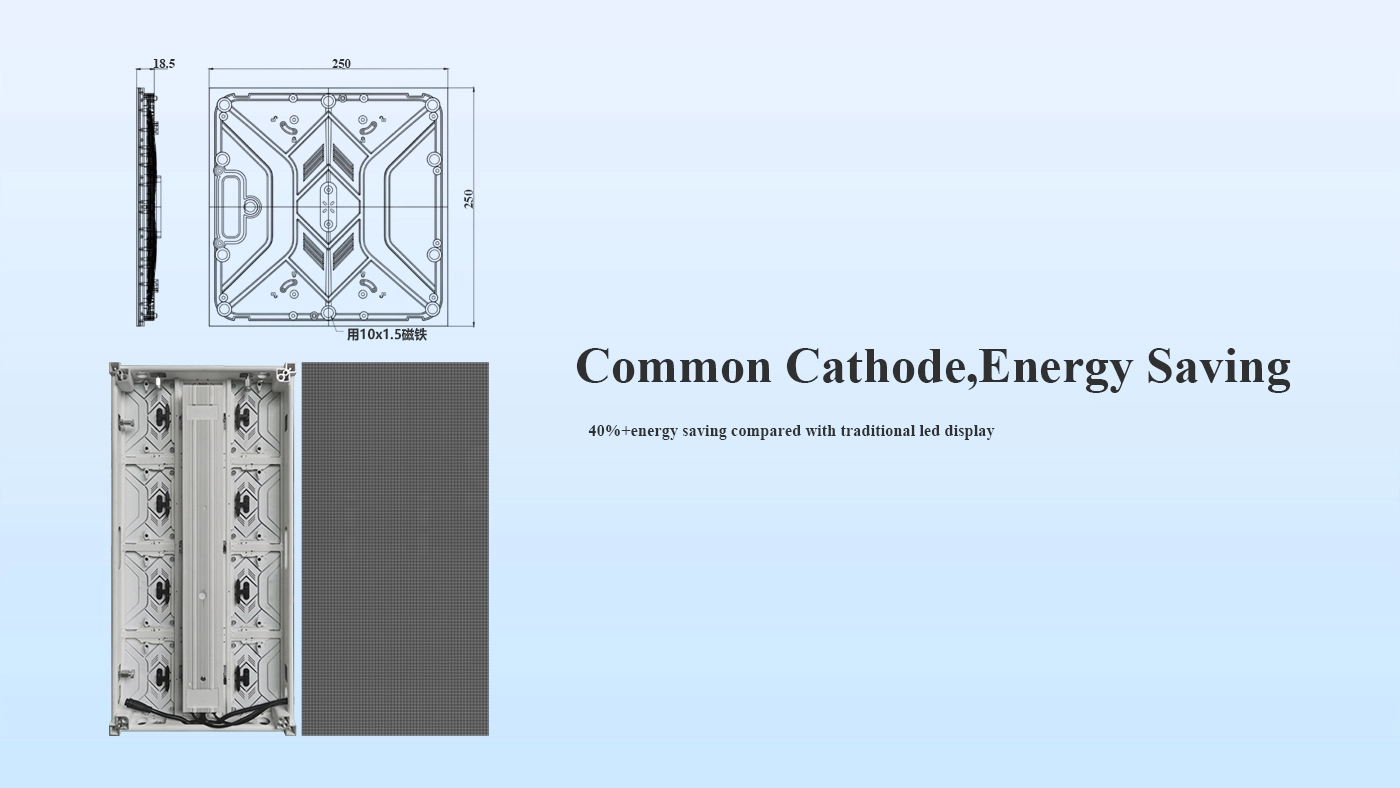

⚡ Energy-Saving with Common Cathode Technology
Engineered with common cathode tecnología, the screen consumes 40% less power than traditional LED displays. This not only helps reduce operational costs but also supports sustainable energy practices.

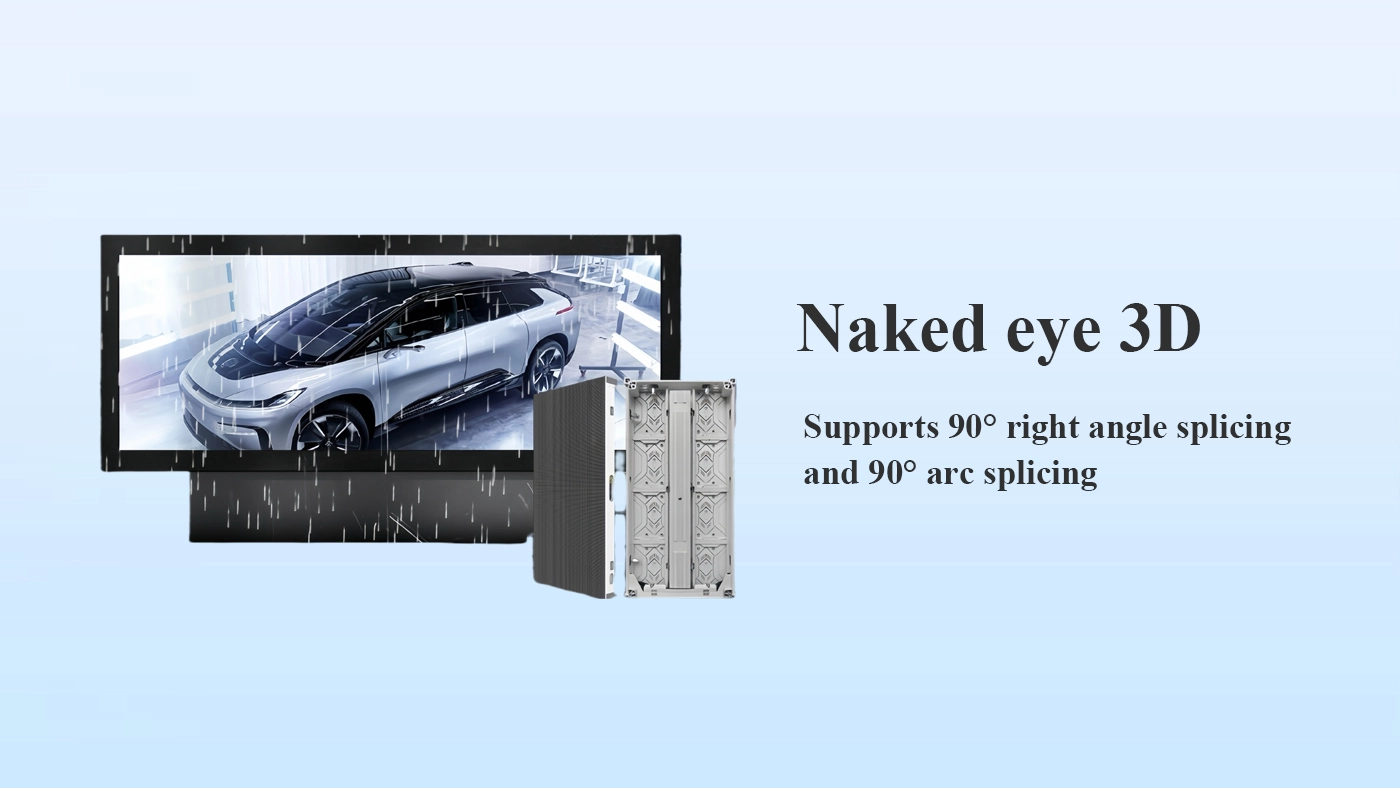

📐 Supports Right Angle & Arc Splicing
Achieve true 3D effects with 90° right angle and arc splicing capabilities. El naked-eyeee 3D LED screen allows flexible design and custom configurations to fit creative display shapes, enhancing the overall impact of visual content.
🔁 High Refresh Rate for Smooth Playback
With a refresh rate ranging from 3840Hz to 7680Hz, el naked-eye 3D LED screen ensures ultra-smooth motion visuals with zero flicker. It’s ideal for playing high-frame-rate videos and high-definition 3D animations.

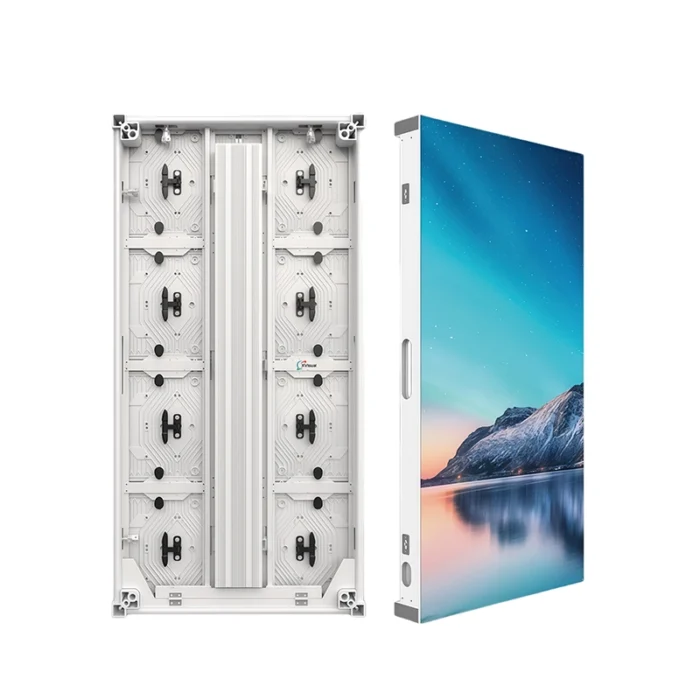

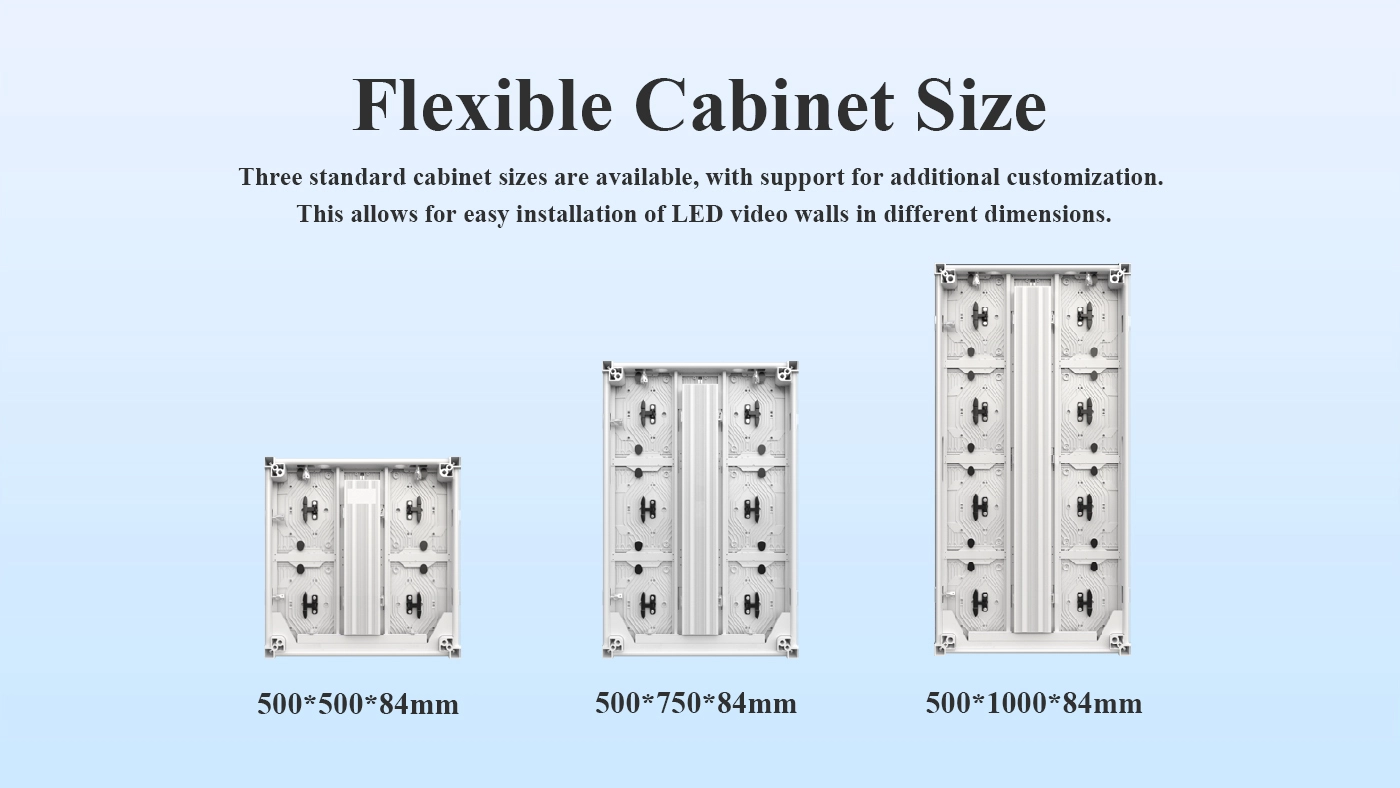

📏 Flexible Cabinet Sizes for Any Application
Available in 500×500mm, 500×750mm, y 500×1000mm cabinet options, el pantalla LED 3D Nakedeye provides unmatched adaptability to meet the demands of any installation environment—from compact window displays to giant outdoor billboards.
🚀 Bring Your Vision to Life with the Nakedeye 3D LED Screen
Whether you’re designing an eye-catching commercial display or an immersive visual environment, el pantalla LED 3D Nakedeye is your gateway to a truly next-generation viewing experience. Easy to install, energy-efficient, and visually stunning, it’s the future of display technology—available now.
Speficación de productos
| Modelo | XOF-P1.5 | XOF-P1.9 | XOF-P2.6 | XOF-P2.9 | XOF-P3.9 |
| Píxel(mm) | 1.56 | 1.95 | 2.6 | 2.97 | 3.91 |
| Densidad de píxeles(píxeles/㎡) | 409,600 | 262,144 | 147,456 | 112,896 | 65,536 |
| Tipo LED | SMD1112 | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Tamaño del módulo(W*H) | 250*250mm | ||||
| Resolución del módulo(W*H) | 160*160 dotas | 128*128 dotas | 96*96 dotas | 84*84 dotas | 64*64 dotas |
| Tamaño del panel(W*H*D) | 500*1000*84mm | ||||
| Resolución de panel(W*H) | 320*640 dotas | 256*512 dotas | 192*384 dotas | 168*336 dotas | 128*256 dotas |

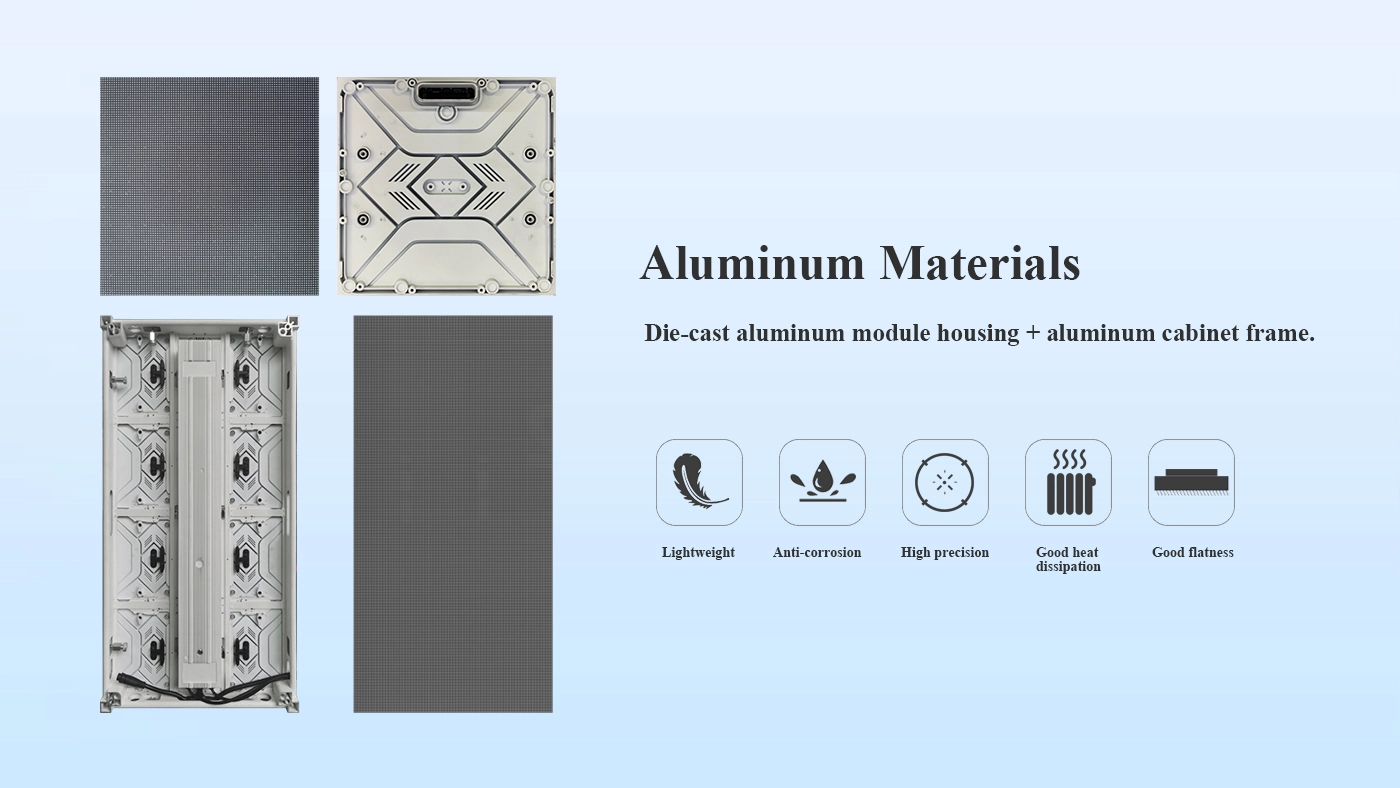

| Panel Material | Aluminum | ||||
| Peso del panel(kg) | 16kg | ||||
| Voltaje de entrada | AC 100-240V | ||||
| Brillo(CD/㎡) | 4000～6500 | ||||
| Ajuste de brillo | Programable/automático/manual | ||||
| Ángulo de visión(H/V) | 140°/140° | ||||
| Escala de grises(poco) | 13/14 | ||||
| Actualización(Hz) | 3840/7680 | ||||
| Relación de contraste | 5000:1 | ||||
| Temperatura del color(K) | 2000-10000 (Ajustable) | ||||
| Max/AVG. Consumo de energía(w/㎡) | 550/186(Cátodo común) | ||||

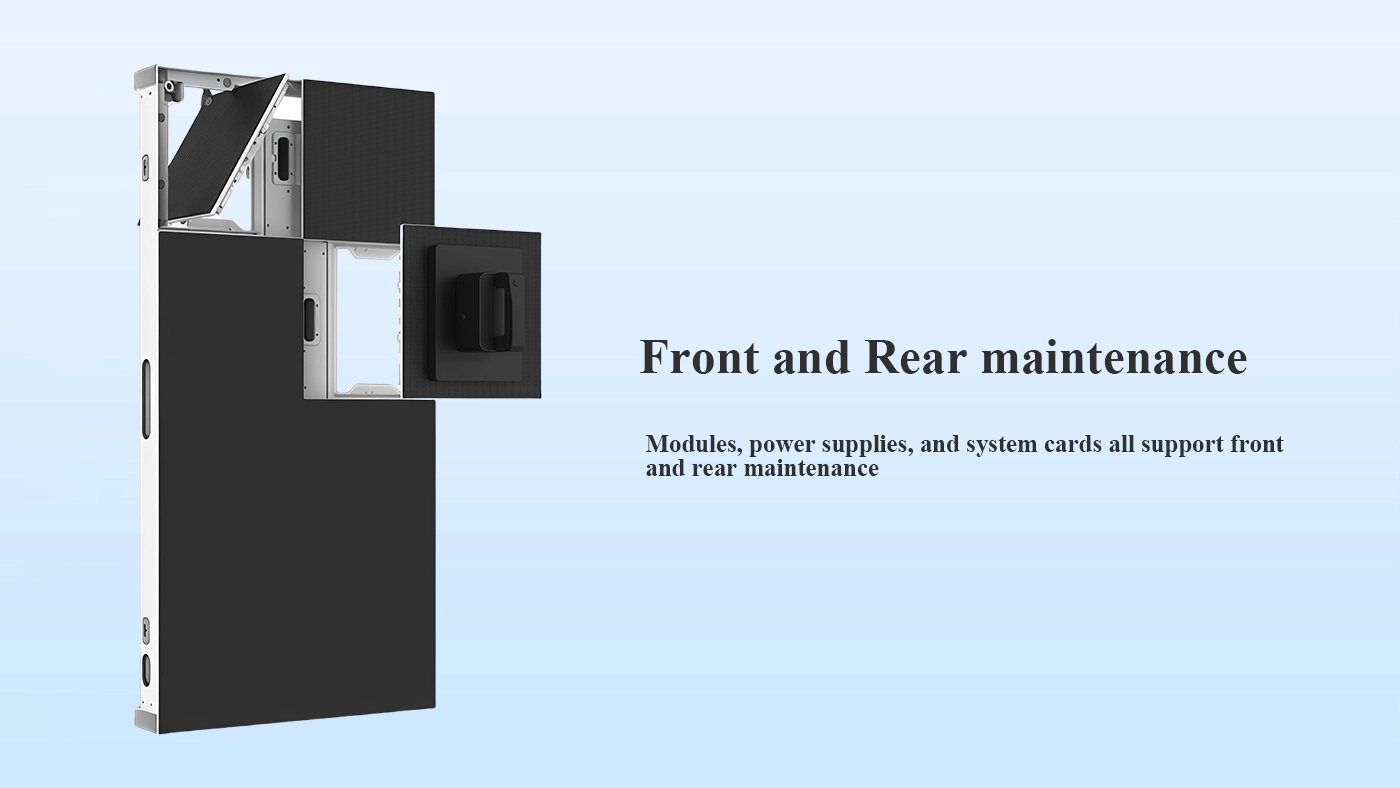

| Utilidad | Front/Rear | ||||
| Calificación IP | IP66 | ||||
| Temperatura de funcionamiento | -40～ 60 ℃ | ||||
| Humedad operativa(RH) | 10%～ 90% | ||||
| La vida laboral(Horas) | 100000 | ||||
