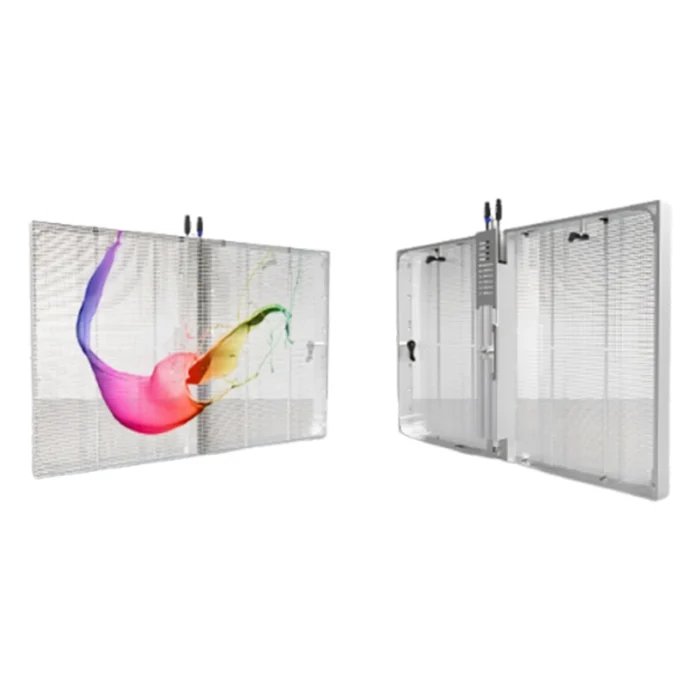

transparent LED display screen
transparent LED display screen
Haga clic para ampliar
pantalla de visualización LED transparente
pantalla de visualización LED transparente

Pantalla LED transparente para la pared de la ventana de vidrio con pantalla de pantalla de malla LED transparente

Característica

  • Ultra-light, High permeability Screens with minimal requirements for steel structure. Hollow out design
  • Glue filling process design, IP65 grade, resistant to rain and fog, and strong wind resistance

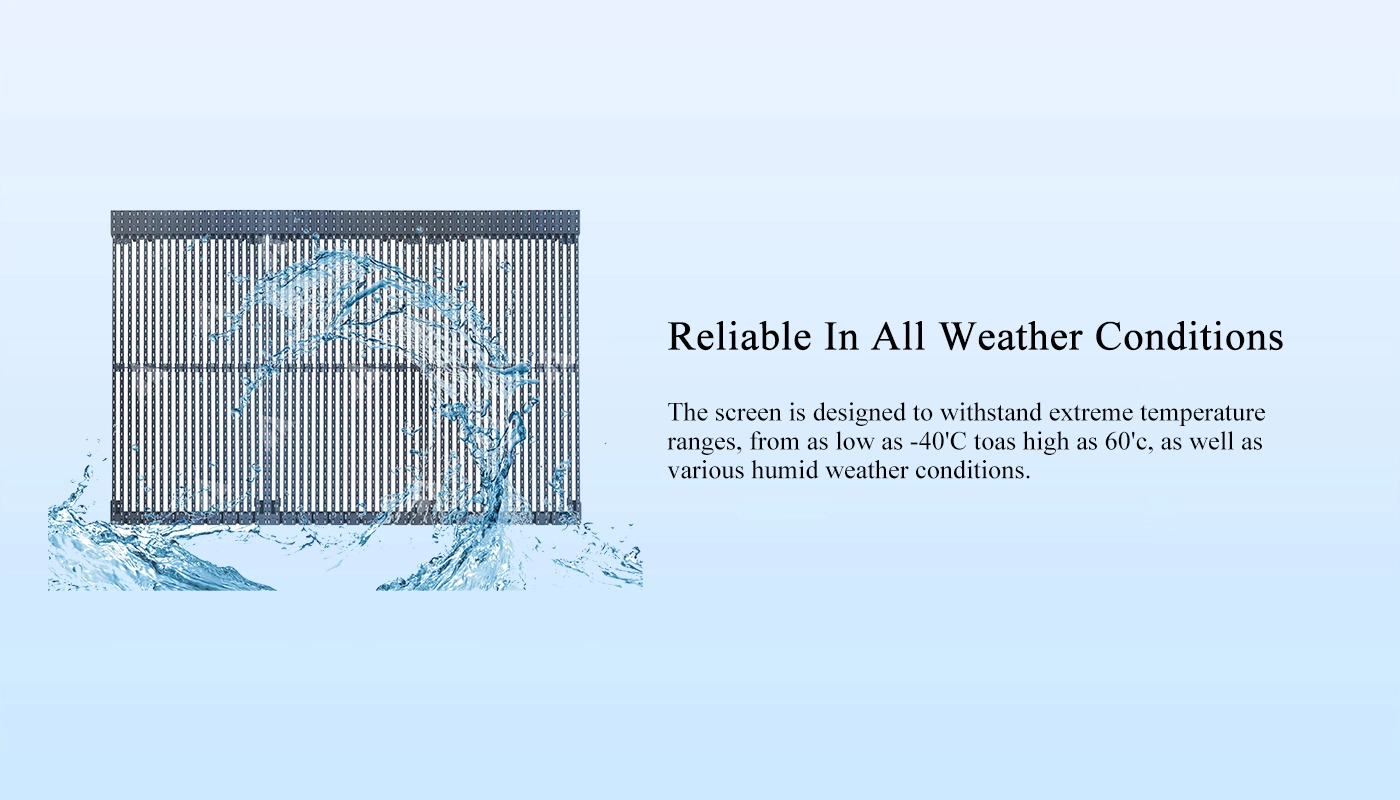

  • Stable operation in harsh cold environments as low as -40 ℃ and high temperatures as high as 50 ℃
  • Adopting rear cover fins for heat dissipation and a light strip hollowed out for natural heat dissipation
  • Applying for any curved or 3D LED wall

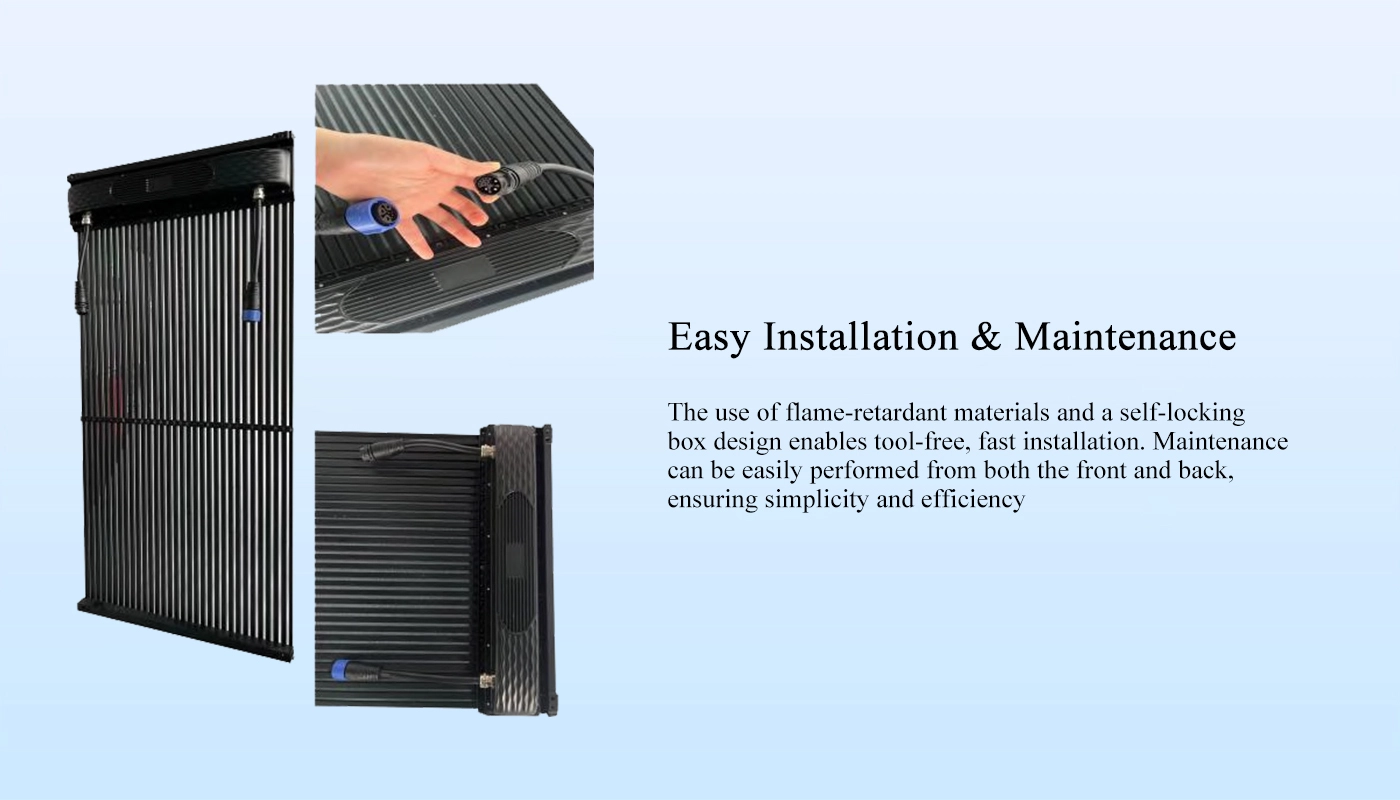

  • Patented structural design, easy to maintain, single-person front/back in 3 minutes/m2
CONSULTA!
Categorías: , Etiqueta:
Descripción

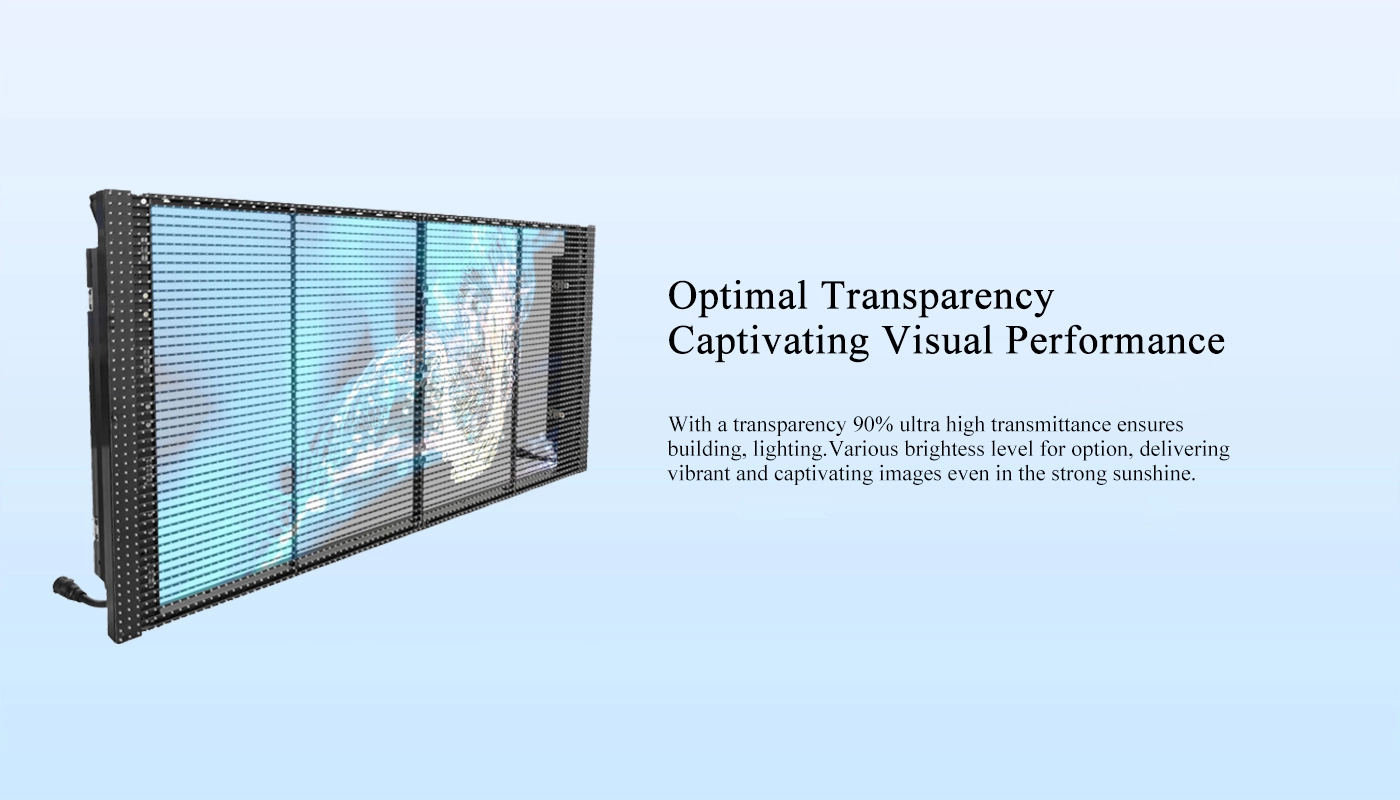

Exterior 90% Transparency Giant Wall Led Advertising Screen Curtain Led Screen 1000*1000mm Mesh Led Screen for Shopping Mall

Transparent LED Display Screen with Thin frame,Light and handy
Product thickness 3.5mm,7kg/m two side power supply box

Transparent LED Display Screen Die cast with aluminum+waterproof and sunscreen

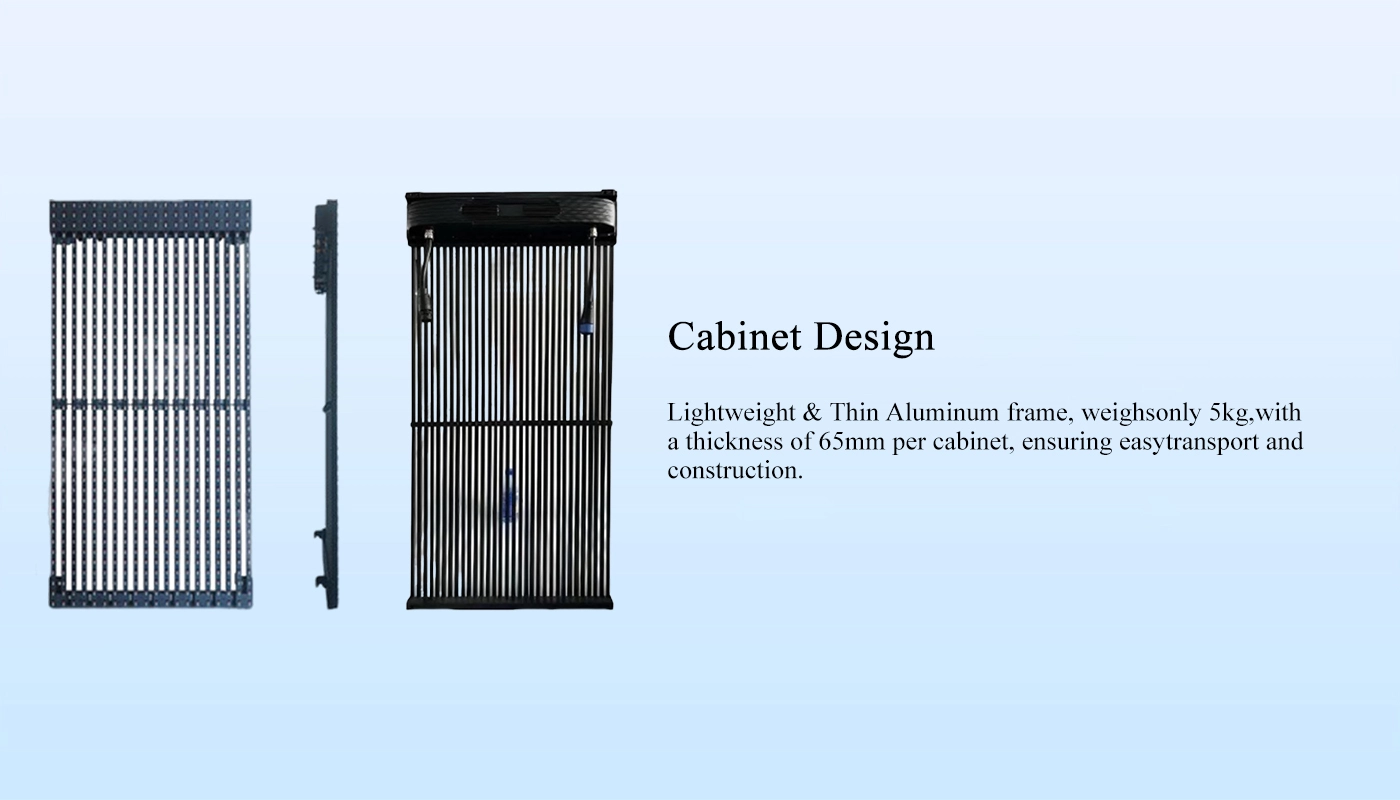

The outer frame is desiqned with all aluminum profiles,
which is ultra-thin and light, and the unit thickness is only 65mm

Transparent LED Display Screen with Alta tasa de actualización, high contrast, intelligent brightness adiustment

Modules size 500mm*62.5mm 1000mm*500mm cabinet (1000mm*1000mm Optional)
Novastar/HuiDu/Linsn control system *For indoor
Support Phone,PC,WIFI ,Live etc all signals model input
Specially use for TV studio, conference center,monitoring center and cinema, museum, etc.
Seamless connection, high contrast ratio, alta tasa de actualización, 16 bit high gray level.

Speficación de productos

<span class ="tr_" id="tr_44" data-source="" data-srclang="en" data-orig="www.lingdaima.com（零代码excel转HTML）">www.lingdaima.com（零代码excel转HTML）</span>
Modelo XTO0812 XTO0715 XTO1010 XTO1212 XTO1515 XTO1531 XTO3131
Píxel(mm) 8.3-12.5 7.8-15.6 10.4-10.4 12.5-12.5 15.6-15.6 15.6-31.25 31.25-31.25
Densidad de píxeles(pixels/ 9600 8192 9216 6400 4096 2048 1024

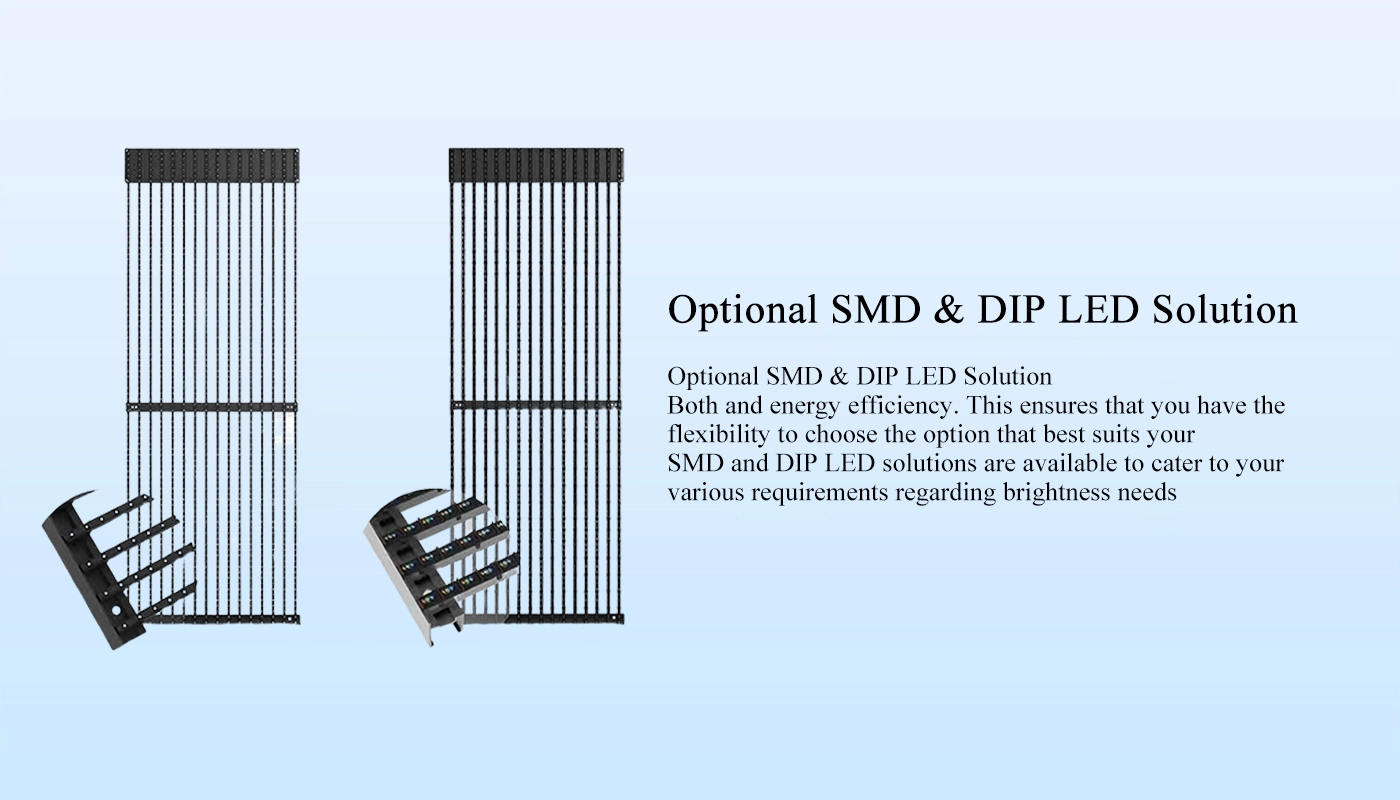

Tipo LED SMD2727 SMD2727 SMD3535 DIP346 SMD3535/DIP346 SMD3535/DIP346 SMD3535/DIP346
Tamaño del módulo(W*H) 10*1000mm
Resolución del módulo(W*H) 1*120dotas 1*128dotas 1*96dotas 1*80dotas 1*64dotas 1*64dotas 1*32dotas
Tamaño del panel(W*H*D) 500*1000*65mm
Resolución de panel(W*H) 40*120 32*128 48*96 40*80 32*64 32*64 16*32
Material de panel Aluminum Alloy
Peso del panel(Kg) 5kg
Voltaje de entrada AC 100-240V
Brillo(CD/㎡) 6000 10000 6000/10000 4000/6000 3000/4000
Ajuste de brillo Programable/automático/manual
Ángulo de visión(H/V) 140°/140 °, 110°/110°
GrayScale(poco) 13/14
Actualización(Hz) 3840
Relación de contraste 5000:1
Temperatura del color(K) 2000~10000 (Ajustable)
Max./Avg.Power Consumption(w/㎡） 800/260 600/200 600/200, 350/140
Utilidad Delantero/trasero
Calificación IP IP65
Working life(Horas) 100000
Certificates CB/EMC/LVD/ETL/FCC/TUV
Curvature Customized
