トグルDefinition of LED Displays
When discussing LED display refresh rates, LEDディスプレイの基本的な理解が必要です. それらの “big electronic boards that play videos” you see everywhere—shopping malls, コンサート, even waiting for packages at your apartment entrance—are almost always LED displays. Essentially, it’s a dense matrix of countless LED light-emitting diodes arranged in a grid. Each diode can emit red, green, or blue light, combining to form a “pixel.”

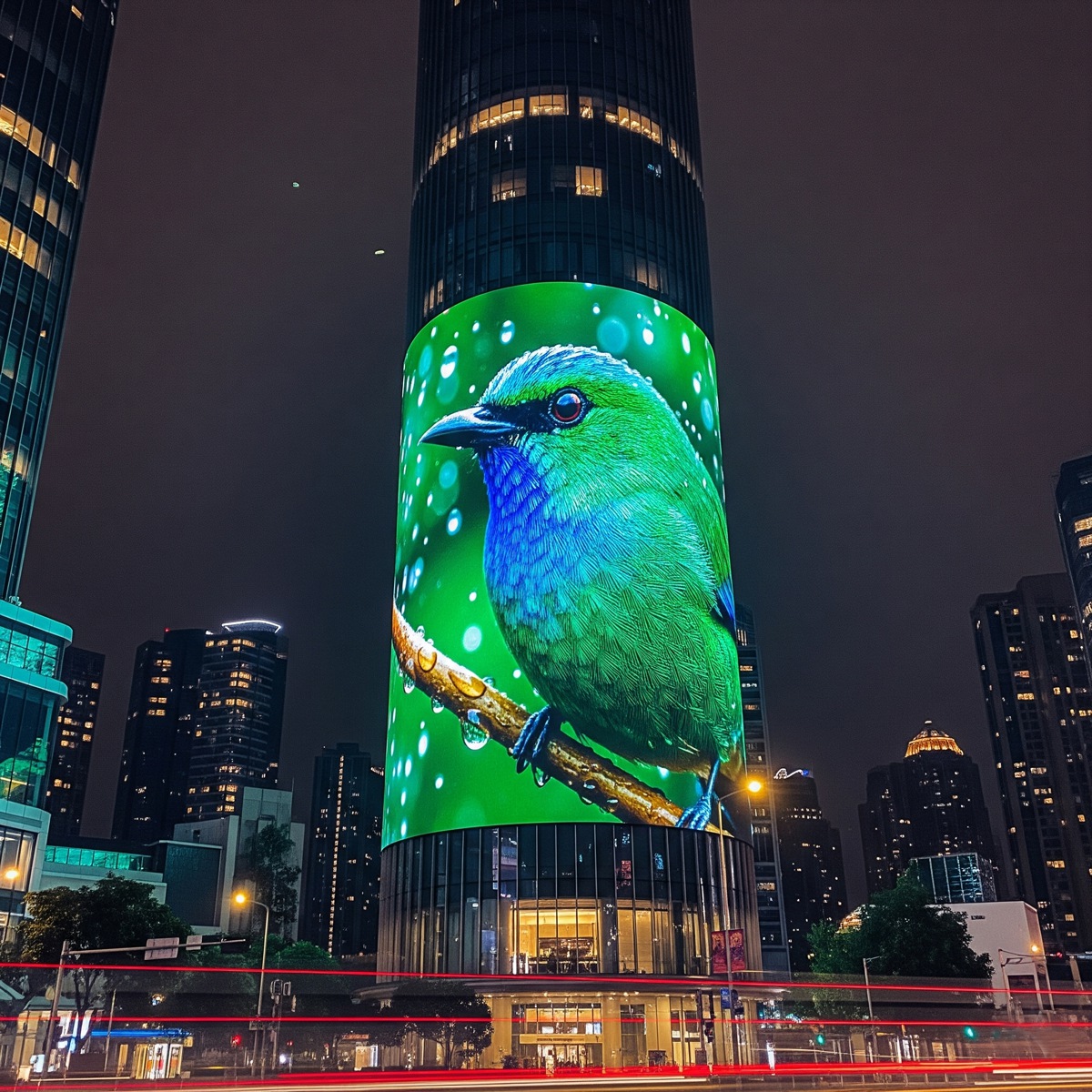

On the building, high-refresh-rate LED displays
The difference in visual quality between screens lies in “pixel size”: smaller pixels and higher density yield finer images. Think of an LED screen as a “super jigsaw puzzle,” where each light is a “piece.” The denser the pieces, the clearer the picture.
How LED Displays Work
At its core, an LED screen works by “tricking your eyes with tiny lights that blink.” Each LED light bulb glows when powered; the higher the current, the brighter it shines. A pixel point composed of red, green, and blue LEDs can produce any color by adjusting their brightness ratios.
The secret to dynamic video lies in rapidly switching each pixel’s color. The control system sends dozens or even hundreds of “commands” per second to each pixel, and the LEDs react lightning-fast (millisecond-level), creating the perception of continuous motion.
Basic Concepts of Refresh Rate
Definition of Refresh Rate
Refresh rate is how many times per second an LED display can fully refresh its entire screen, measured in “hertz (Hz).” 例えば, a 60Hz screen sends a “full-screen command” to all pixels 60 times per second.
An LED screen’s refresh rate is like the speed of flipping pages in a flip book: the faster it turns, the more responsive the image feels, and the smoother the motion appears.
The Importance of Refresh Rate
Refresh rate directly impacts visual experience through “image stability.” The human eye has “persistence of vision,” where images get “stored” in your brain for 0.1-0.4 seconds. If the refresh rate falls below this speed, images overlap and become blurred.
Different refresh rates deliver varying experiences:

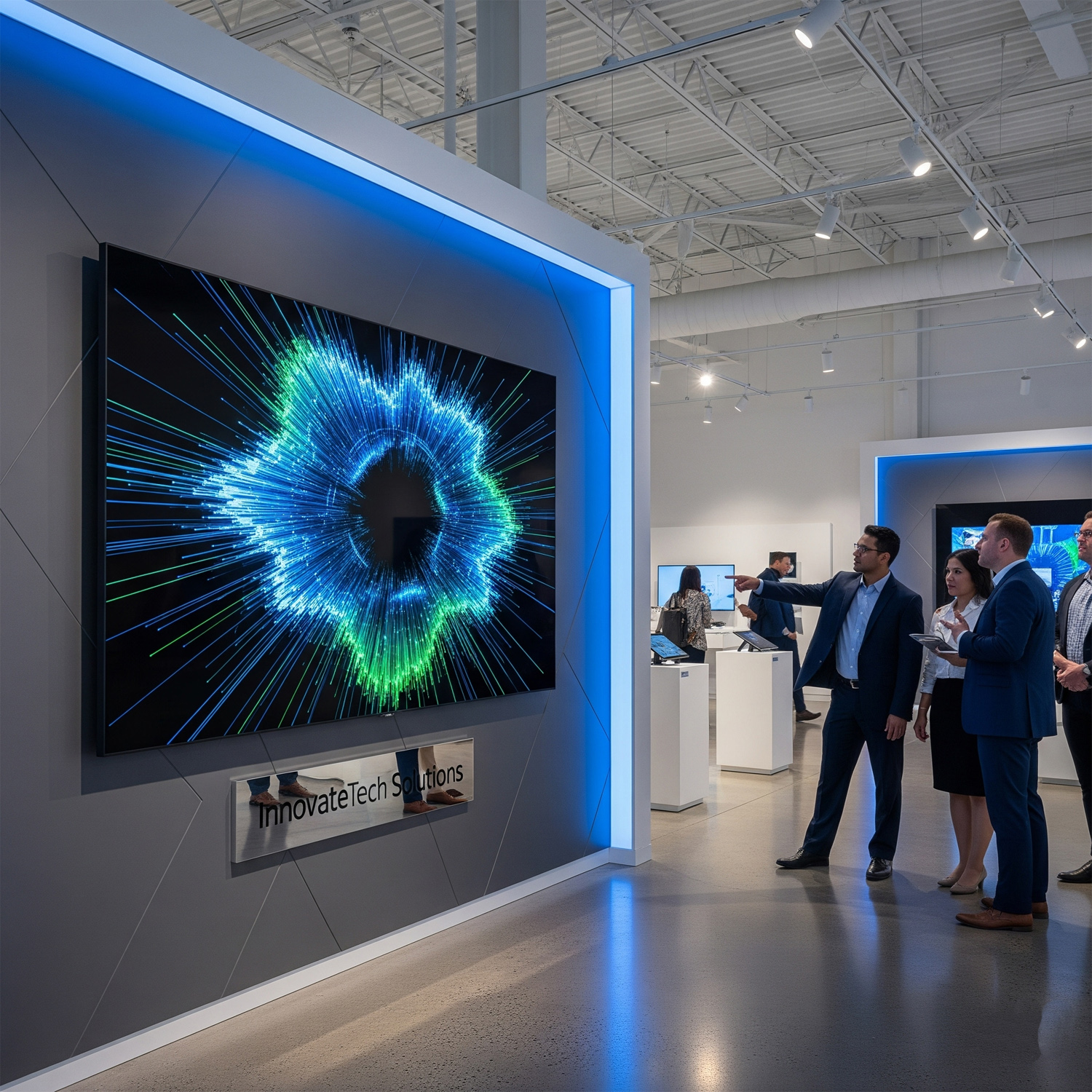

Indoor Museum LED Display
- Below 30Hz: Resembles old film footage with noticeable shaking
- 60Hz: Entry-level “usable” for regular videos and images
- 120Hz+: True “silky smooth” for dynamic content
Refresh rate directly determines whether an LED screen can perform its job effectively across various applications.
Factors Affecting LED Display Refresh Rates
Display Hardware
LED screen refresh rate reveals hardware performance—every component from LEDs and pixel structure to circuit board can limit performance.
LED response speed is crucial. Budget LEDs might take 10 milliseconds to react, while high-quality LEDs complete the “light-off” switch in just 1 millisecond. Pixel structure and circuit boards also matter—dense pixels require efficient data pathways to avoid congestion.
Driver IC Performance
The driver IC acts as an “interpreter” that translates control system commands into electrical signals LEDs can understand. Low-quality driver ICs may only support 60Hz maximum refresh rate, while high-end ICs can handle 1920Hz or higher.
The driver IC’s processing capability directly determines how quickly commands can be executed, making it a critical component for achieving high refresh rates.
Control System Capability
The control system serves as the LED screen’s “brain,” responsible for sending dozens of “full-screen commands” every second. Its capability depends on processing speed and transmission bandwidth.
High-end systems use multi-core processors and fiber optic cables for maximum throughput, while low-end systems may struggle with basic Ethernet connections and single-core processing.
Refresh Rate and Visual Experience
Refresh Rate and Image Clarity
The relationship between refresh rate and clarity boils down to “image stability.” Low-refresh-rate screens act like “shaky-handed photographers” where previous frames haven’t faded before new ones arrive, creating ghosting effects.
Higher refresh rates provide razor-sharp text edges and stable images, making even fine details visible and clear.
Refresh Rate and Dynamic Image Performance
Dynamic scenes represent the “ultimate exam” for refresh rates. The difference between low and high refresh rates can make it feel like watching entirely different videos.
Higher refresh rates preserve more detail in motion, making movements flow naturally and revealing subtle elements that would otherwise be lost to motion blur.
Refresh Rates for Different LED Display Types
Small-Pitch LED Screens
Small-pitch displays (pixel pitch ≤ P2) require high refresh rates due to close viewing distances. These screens are commonly found in meeting rooms, command centers, and high-end showrooms.
Mainstream micro-pitch displays operate at 120Hz or higher, with some manufacturers pushing 3840Hz refresh rates to handle close viewing distance, high resolution, and dynamic content simultaneously.
Conventional LED Displays
Standard screens (P3 to P10 pixel pitch) represent a balanced approach, typically viewed from 1-5 meters away. Their refresh rates don’t need to be extremely high—60-120Hz usually suffices.
These displays excel at balancing experience and cost, avoiding overinvestment in unnecessary high refresh rates while maintaining acceptable performance for most commercial applications.
屋外LED画面
Outdoor screens have evolved from “rough-and-ready” solutions to sophisticated displays. Today’s mainstream outdoor refresh rates exceed 60Hz to accommodate dynamic content like live sports and fast-cut advertisements.
しかし, outdoor high refresh rates must solve the “power consumption + heat dissipation” dilemma through efficient driver ICs and proper cooling systems.
Technical Challenges of Refresh Rates
Technical Hurdles of High Refresh Rates
Achieving high refresh rates isn’t as simple as changing numbers—it requires perfect coordination between components and data streams.
Key challenges include:
- LED chip response speed limitations
- Driver IC processing capacity and heat management
- Control system data transmission capabilities
- Thermal management for sustained performance
Each component must be optimized to handle the increased demands of high refresh rates without compromising stability or lifespan.
Refresh Rate and Power Consumption
Higher refresh rates inevitably increase power consumption due to more frequent energizing of LED beads. A standard P5 advertising screen might consume 100W per hour at 60Hz but jump to 150W at 120Hz.
Manufacturers address this through high-efficiency driver ICs, smart dimming systems, and low-power LEDs that maintain performance while reducing energy requirements.
Strategies for Boosting LED Display Refresh Rates
Hardware Upgrade
The most practical approach involves targeted hardware improvements:
- Upgrade to high-speed LED chips with sub-1ms response times
- Implement advanced driver ICs that support higher refresh rates
- Upgrade circuit boards to handle increased data transmission demands
Each component upgrade addresses specific bottlenecks that might limit overall refresh rate performance.
Software Optimization
Software serves as the “magician behind the scenes” that can maximize hardware potential through:
- Frame synchronization algorithms
- Dynamic frame compensation techniques
- Color optimization that works with refresh rates
- Intelligent scene adaptation
These software solutions can often achieve significant improvements without requiring complete hardware replacements.
System Calibration
Proper system calibration ensures all components work harmoniously:
- Compatibility tuning between control systems and hardware
- Scenario-based dynamic calibration
- Thermal management optimization
- Real-time performance monitoring and adjustment
Effective calibration can resolve issues that might otherwise prevent systems from achieving their maximum potential.
The Importance of Refresh Rate Across Different Applications
Advertising Applications
In advertising, high refresh rates serve as secret weapons for capturing audience attention. The difference between 60Hz and 120Hz can determine whether viewers engage with content or simply glance past it.
High refresh rates transform “invisible selling points” into “tangible visuals” that keep viewers watching longer and remembering content more effectively.
Stage Backdrops
For stage productions, refresh rate represents the “second heartbeat of a concert” that elevates performances from simple displays to immersive experiences.
High refresh rates ensure seamless synchronization between lighting, motion, and visual effects, creating the cinematic quality that modern audiences expect.
Surveillance Systems
In surveillance applications, refresh rates become matters of safety rather than aesthetics. Higher refresh rates enable clearer identification of moving objects, license plates, and critical details that might be missed with inferior displays.
The real-time precision offered by high refresh rates can make crucial differences in emergency response and security monitoring situations.
Future Trends in LED Display Refresh Rates
Technological Innovation
Future developments focus on making high refresh rates “知的” rather than simply pushing higher numbers:
- Micro LED chips with faster response times and lower power consumption
- AI adaptive drivers that optimize performance based on content
- Advanced frame generation technologies
- Cross-scenario auto-adaptation systems
These innovations aim to solve the traditional dilemmas of “high refresh = power-hungry = expensive” through smarter technological solutions.
Market Response
Market demand for high refresh rates has shifted from “passive acceptance” に “active demand” as users become more discerning about visual quality.
Industry standards have tightened while costs have decreased, making high refresh rates more accessible across various market segments from small businesses to premium applications.
Conclusions and Recommendations
Key Takeaways
Refresh rate represents the speed at which LED screens “communicate with users’ eyes.” Its importance extends beyond mere numbers to encompass:
- Hardware limitations that define lower boundaries
- Application requirements that determine upper limits
- Experience quality that delivers actual value
- Technical challenges that require balanced solutions
- Intelligent future developments that promise better efficiency
Practical Recommendations
For users:
- Define your specific usage scenario before selecting refresh rates
- Avoid assuming “higher is always better”
- Consider hidden costs including power consumption
- Choose energy-efficient solutions when possible
For manufacturers:
- Avoid one-size-fits-all solutions
- Focus on delivering genuinely useful high refresh rates
- Make high refresh rates smart and adaptive
- Work toward making high refresh rates affordable and accessible
Ultimately, refresh rate isn’t just a premium feature but the foundation for smooth visuals that serve practical purposes across various applications.
