High-Performance P3.91 LED Display Screens
Our P3.91 LED display screens deliver stunning visual clarity for commercial advertising and stage events. They support 4K and 8K ultra-high definition with a 100000:1 contrast ratio, ensuring vibrant colors and sharp images in every setting.

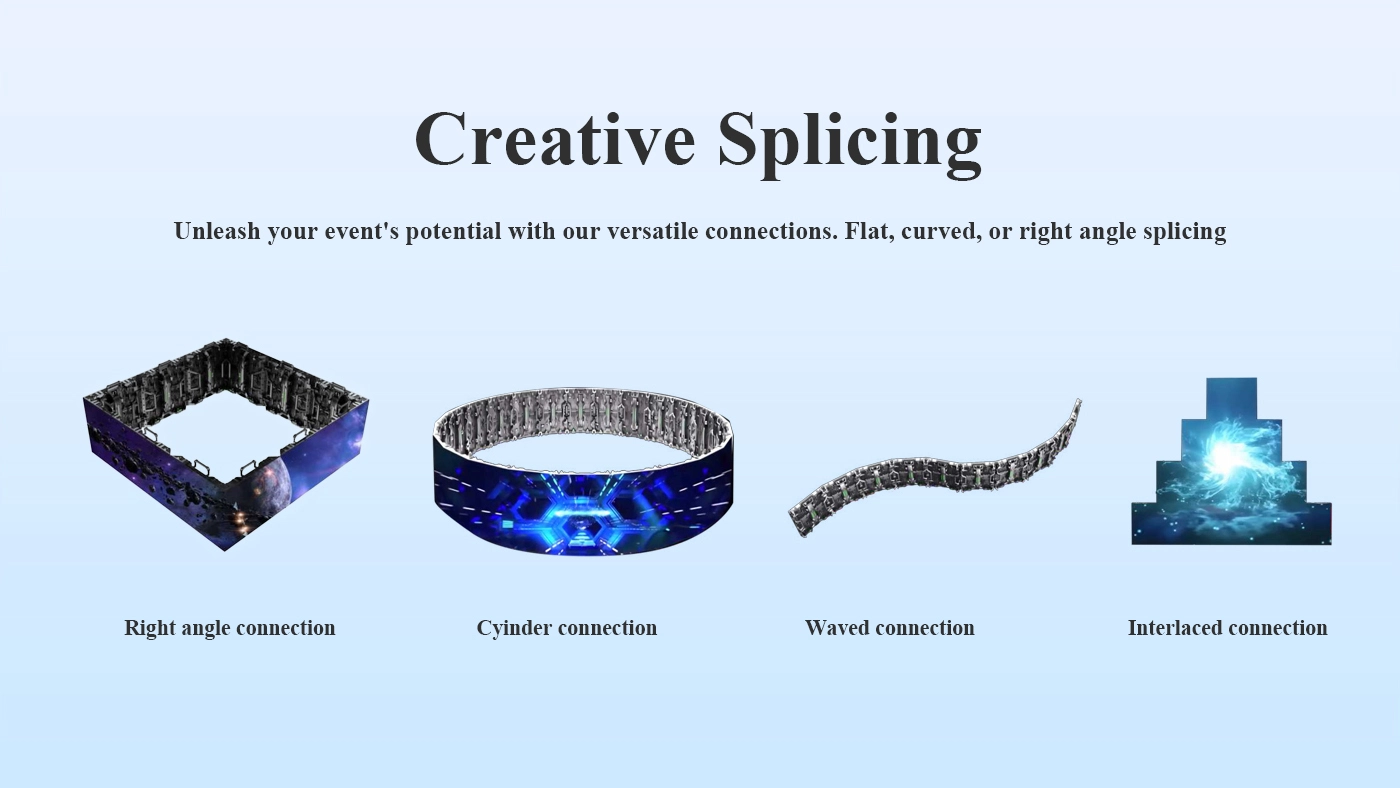

Flexible Splicing for Creative Setups
The creative splicing design supports curvature arcs from -15° to +15°, allowing unique display shapes for different venues. With cabinet sizes of 500×500mm and 500×1000mm, these screens adapt easily to various stage layouts and advertising spaces.
Exceptional Image Quality and Smooth Playback
Enjoy ultra-high refresh rates from 3840Hz to 7680Hz for flicker-free performance. The wide viewing angle (H: 160°, V: 140°) ensures every audience member experiences the same high-quality visuals from any position.

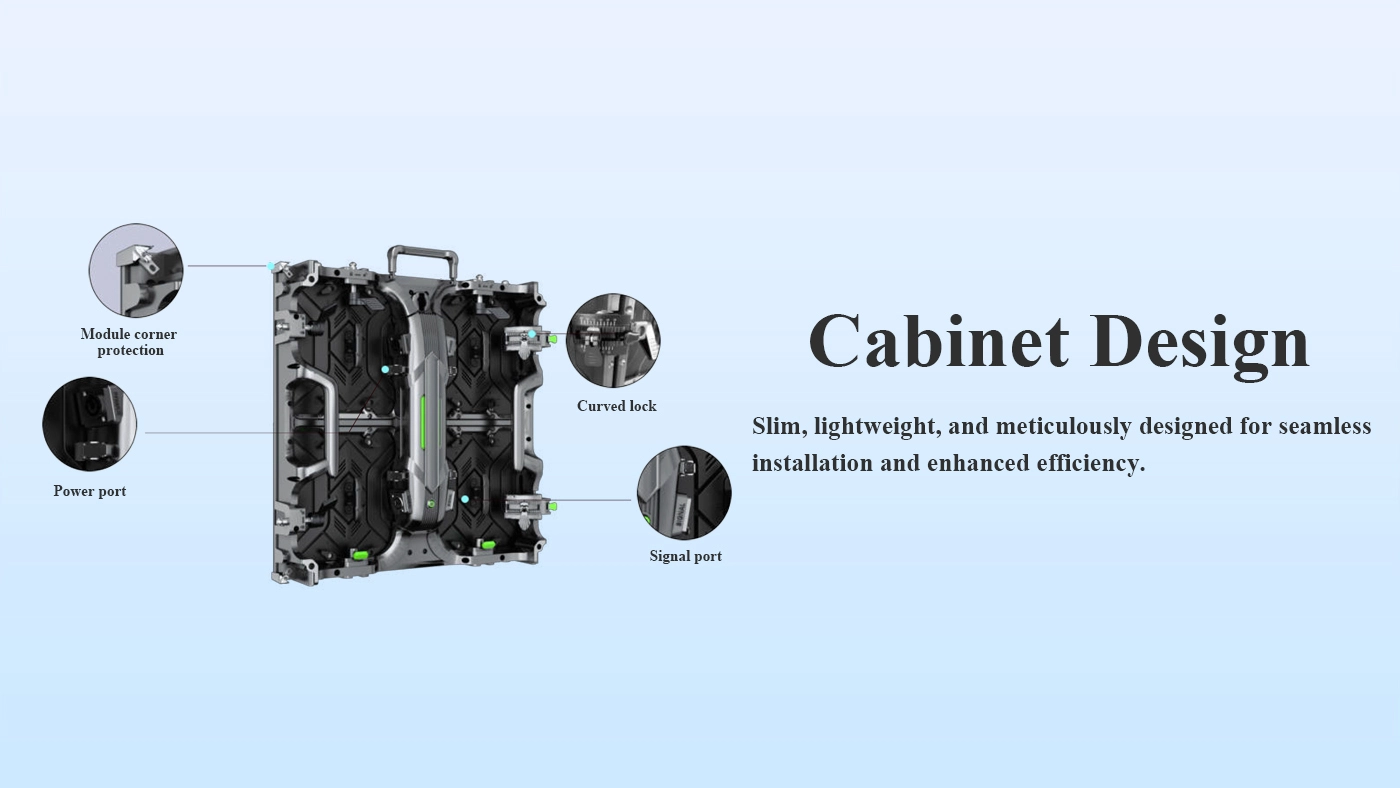

Durable and Lightweight Design
Each cabinet is made from die-cast aluminum, ensuring high strength and excellent heat dissipation. With weights of only 7.5kg and 12.5kg, installation is fast and efficient. The rugged structure withstands frequent assembly and transport for rental use.

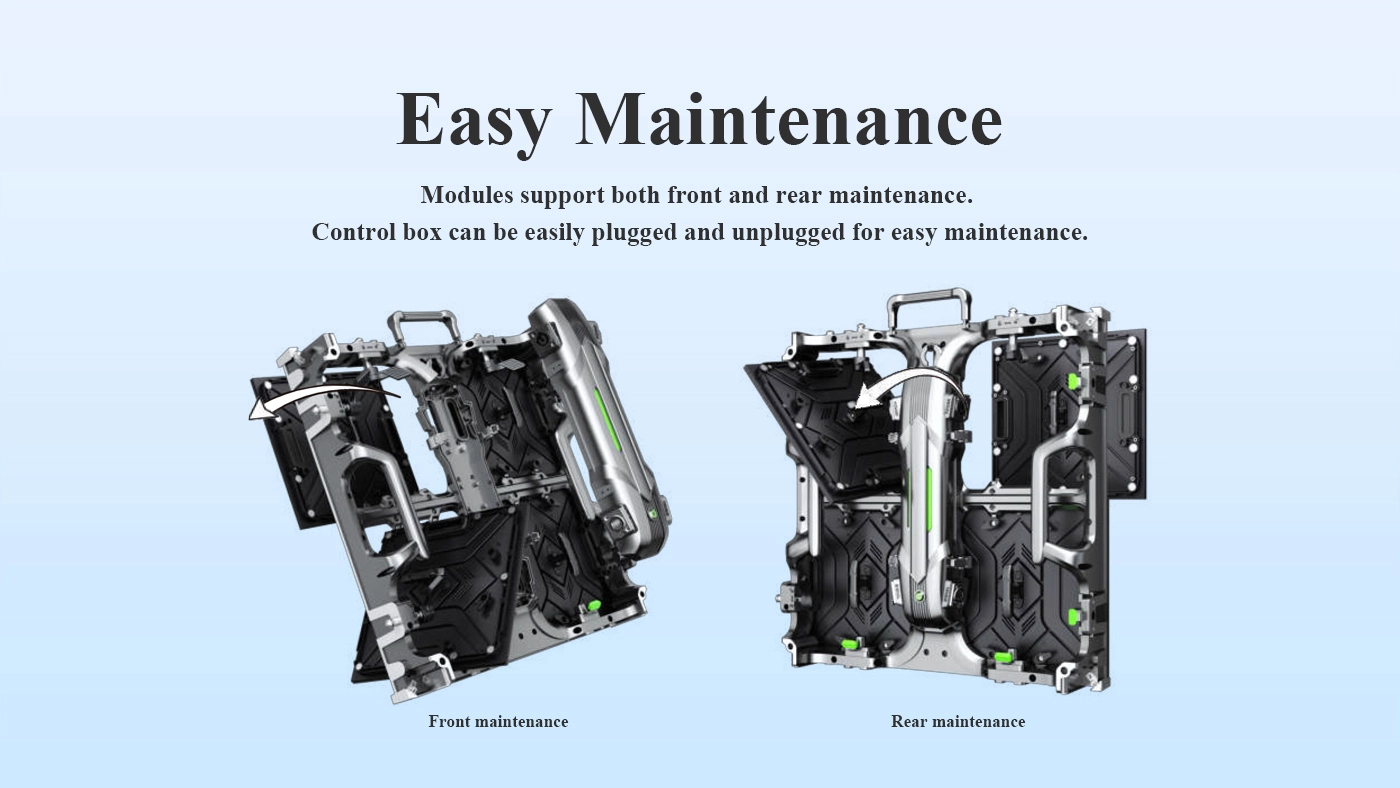

Easy Maintenance and Installation

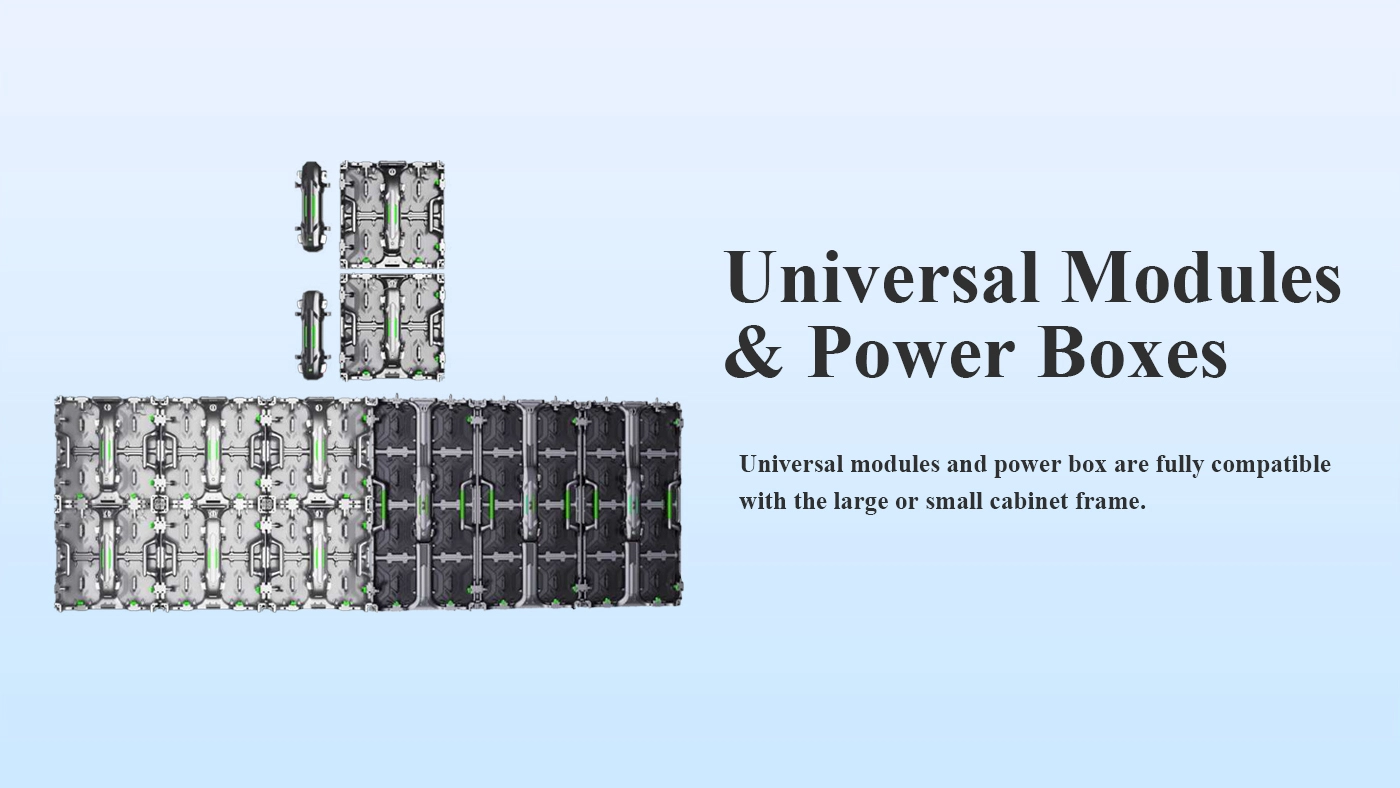

The design allows both front and rear maintenance, reducing downtime and simplifying servicing. Modules measure 250×250mm, enabling quick replacement and flexible configurations to meet different event requirements.
Energy Efficiency for Lower Costs
Our P3.91 LED display screens use over 30% less energy compared to standard models, helping you reduce operational expenses without compromising on brightness or performance.
Outdoor-Ready Protection
Some models feature IP65 waterproofing for reliable outdoor use. The wear-resistant masks protect against damage from transport and repeated handling, ensuring long-lasting performance even in challenging environments.
Ideal for Multiple Applications
Perfect for large conferences, music festivals, fairs, and outdoor advertising. Whether for rental or permanent installation, these LED panels deliver unmatched flexibility, visual impact, and reliability.
We welcome bulk orders for our P3.91 LED display screens. Contact XVisual today to customize your LED solution.
Products Spefication
| Model | XRD1.9 | XRD2.6 | XRD2.9 | XRD3.9 | XRDO2.6 | XRDO2.9 | XRDO3.9 |
| Pixel Pitch(mm) | 1.953 | 2.6 | 2.97 | 3.91 | 2.6 | 2.97 | 3.91 |
| Pixel Density(pixels/㎡) | 278,784 | 147,456 | 112,896 | 65,536 | 147,456 | 112,896 | 65,536 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module Size(W*H) | 250*250mm | ||||||
| Module Resolution(W*H) | 128*128 dots | 96*96 dots | 84*84 dots | 64*64 dots | 96*96 dots | 84*84 dots | 64*64 dots |
| Panel Size(W*H*D) | 500*500*68/500*1000*68mm | ||||||
| Panel Resolution(W*H) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight(kg) | 7.5kg/12.5kg | ||||||
| Input Voltage | AC 100-240V | ||||||
| Brightness(cd/㎡) | 900 | 4000 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||||
| Viewing Angle(H/V) | 140°/140° | ||||||
| Gray Scale(bit) | 13/14 | ||||||
| Refresh Rate(Hz) | 3840/7680 | ||||||
| Contrast Ratio | 7000:1 | 5000:1 | |||||
| Color Temperature(K) | 2000-10000 (Adjustable) | ||||||
| Power Consumption(W/㎡) | 550/150 Max/Avg | 700/200 Max/Avg | |||||
| Serviceability | Front/Rear | ||||||
| IP Rating | IP30 | IP65 | |||||
| Working Life(Hours) | 100,000 | ||||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV/ERP/SAA | ||||||
| Curvature | Standard Arc ﹣15°/﹣10°/﹣5°/0°/5°/10°/15° | ||||||
