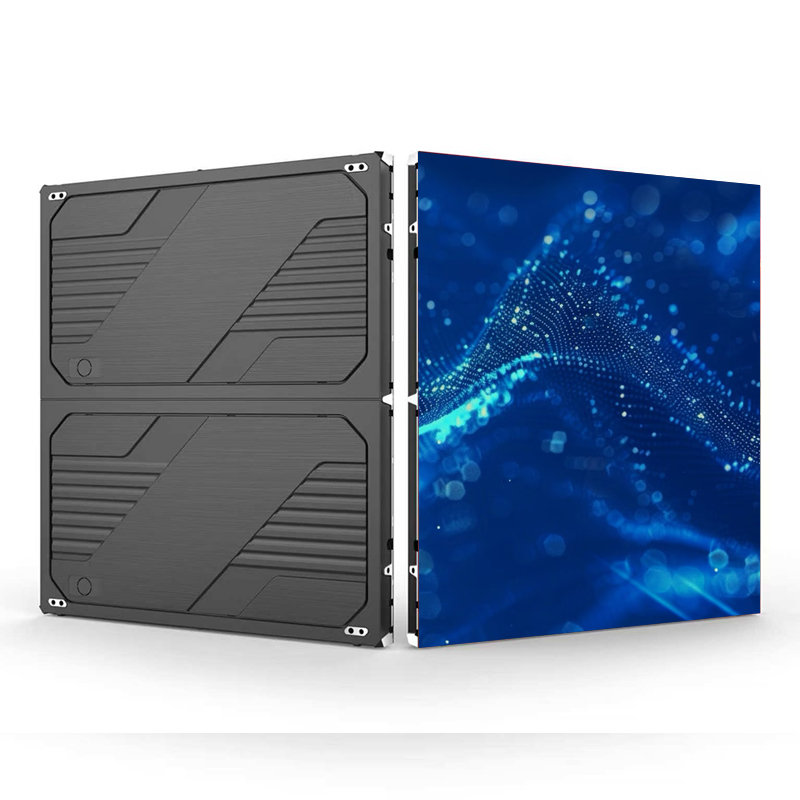

High Resolution 4k 8k Indoor Hd Cob LED Video Wall Panel P0.78 P0.9 P1.25 P1.56 Small Spacing Cob LED Display Screen
High-resolution COB LED display with 4K/8K support, suitable for indoor and outdoor use, featuring a die-casting aluminum cabinet, front maintenance, adjustable brightness (50-500 cd/m²), IP65 protection, and a contrast ratio ≥10000:1. Certified with CE, RoHS, and CCC for compliance with EU safety standards and environmental regulations, ensuring market access and reliability.
What is the difference from traditional LED SMD technology?
1.The flip-chip COB package uses Mlni/Micro LED chips.
2.lt is directly integrated and packaged on the PCB board through solid crystal and molding
methods.
3.Simplified the packaging process of the entire chip without soldering.
4.The original SMD reflow soldering and other processes are cancelled, completely solves
the failure problem caused by soldering.
5 Better the protective performance and longer the product life span.
6.Lower dead lamp rate,smaller pitch, higher resolution.
Seamless Excellence with Large LED Modules
Four vertical panels minimize creases compared to horizontal
ones, enhancing overall uniformity and seamless splicing
while delivering superior performance for large-scale applications
Unmatched Deep Blacks Micro LED technology
delivers high brightness andefficient heat dissipation. The surface is coated with a durable
black polymer material, ensuring exceptional black consistency
COB LED display screen with Ultimate Durability Built for tough environments
XIS PRO Slim Series delivers exceptional durability-resisting impact, dust,
and moisture for reliable, long-lasting performance
COB LED display screen with Cool Screen
Using flip-chip COB and common cathode tech, the
XIS PRO Slim Series stays cool while delivering bright, flawless visuals.
Products Spefication
| Model | XIFP0.6 | XIFP0.7 | XIFP0.9 | XIFP1.25 | XIFP1.5 | XIFP1.8 |
| Pixel Pitch(mm) | 0.62 | 0.78 | 0.93 | 1.25 | 1.56 | 1.875 |
| Pixel Density(pixels/㎡) | 2,560,000 | 1,638,400 | 1,137,778 | 640,000 | 409,600 | 284,444 |
| LED Type | Flip chip COB | |||||
| Module Size(W*H) | 150*168.75mm | |||||
| Module Resolution(W*H) | 240*270 dots | 192*216 dots | 160*180 dots | 120*135 dots | 96*108 dots | 80*90 dots |
| Panel Size(W*H*D) | 600*337.5*39/600*675*39mm | |||||
| Panel Resolution(W*H) | 960*540 dots | 768*432 dots | 640*360 dots | 480*270 dots | 384*216 dots | 320*180 dots |
| Panel Material | Die-cast Aluminum | |||||
| Panel Weight(kg) | 4/7.9kg | |||||
| Input Voltage | AC 100-240V | |||||
| Brightness(cd/㎡) | 600～1000 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | |||||
| Viewing Angle(H/V) | 170°/170° | |||||
| Gray Scale(bit) | 13/14 | |||||
| Refresh Rate(Hz) | 3840/7680 | |||||
| Contrast Ratio | 10000:1 | |||||
| Color Temperature(K) | 2000-10000 (Adjustable) | |||||
| Power Consumption(w/㎡) | 400/100(Max./Avg. ) | |||||
| Serviceability | Front Access | |||||
| IP Rating | IP60/IP30(Front/Rear) | |||||
| Operating Temperature | -40～60℃ | |||||
| Operating Humidity(RH) | 10%～80% | |||||
| Working Life(Hours) | 100000 | |||||
