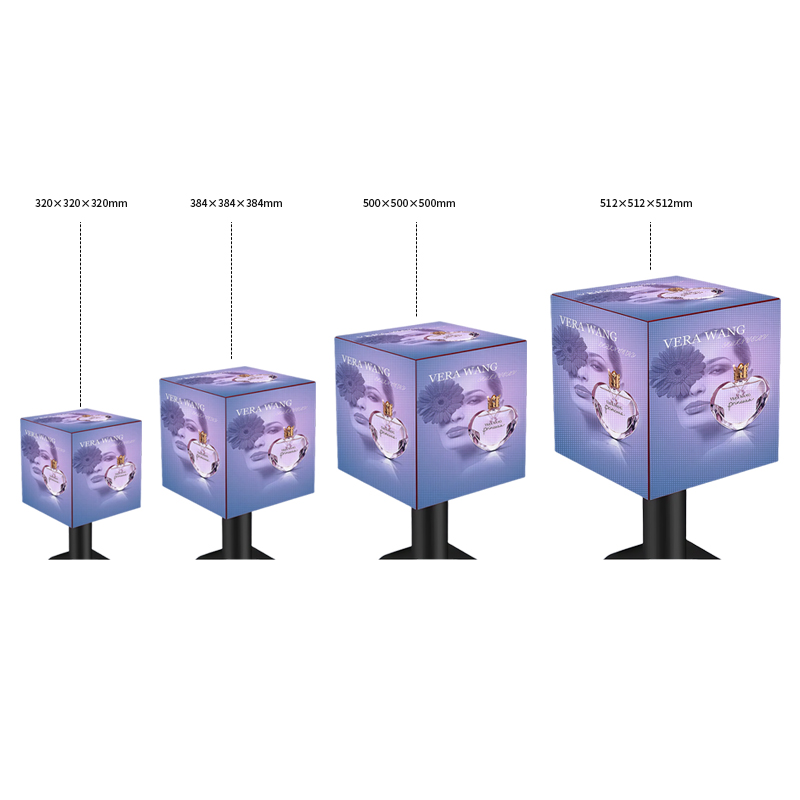

IP65 LED tube Display P3.91 5 Sides Advertising Magic Cube LED Screen for Store Hotel Bar
High protection, Dust-Proof Waterproof, Anti-leakage
Front and rear protection level lP65, fully Glue filling modules used,ensure the whole cabinet is waterproof without leaking
Magic Cube LED Screen with WIFl & 4G remote control
Support WlFl & 4G remote control,support realize many tasks such as advertisement publishing,updating,management etc
Magic Cube LED Screen for Lightweight and easy installation
The Cube LED siqn has the advantages of a lightweight,good wind resistance, easy installation
waterproof performance, $mart modular design secures the fixing of panels and easy removal.
No need frame for installation, no professional installation is required
Products Spefication
| Model | XLC2 | XLC2.5 | XLC3 |
| Pixel Pitch(mm) | 2 | 2.5 | 3 |
| Pixel Density | 250000 dots/m² | 160000 dots/m² | 111111 dots/m² |
| Module Size(W×H) | 320*160mm | 320*160mm | 192*192mm |
| Display Area | 640mm*640mm*6 sides | 640mm*640mm*6 sides | 576mm*576mm*6 sides |
| 960mm*960mm*6 sides | 960mm*960mm*6 sides | 768mm*768mm*6 sides | |
| 1280mm*1280mm*6 sides | 1280mm*1280mm*6 sides | 1152mm*1152mm*6 sides | |
| Display Resolution(pixels) | 320*320*6 sides | 256*256*6 sides | 192*192*6 sides |
| 480*480*6 sides | 384*384*6 sides | 256*256*6 sides | |
| 640*640*6 sides | 512*512*6 sides | 384*384*6 sides | |
| Maintenance Mode | Front Access | Front Access | Front Access |
| IP Grade | IP20 | IP20 | IP20 |
| Brightness | ≥600 cd/m² | ≥600 cd/m² | ≥600 cd/m² |
| White Balance Color Temp. | 3200K—12500K adjustable | 3200K—12500K adjustable | 3200K—12500K adjustable |
| Single Point Brightness Correction | Yes | Yes | Yes |
| Single Point Chroma Correction | Yes | Yes | Yes |
| Brightness Uniformity | ≥98% | ≥98% | ≥98% |
| Rotate Speed | Adjustable | Adjustable | Adjustable |
| Rotate Direction | Clockwise / Anticlokwise | Clockwise / Anticlokwise | Clockwise / Anticlokwise |
| Support Rotate | Yes | Yes | No |
| Viewing Angle | 360° | 360° | 360° |
| Contrast Ratio | ≥5000:1 | ≥5000:1 | ≥5000:1 |
| Max. Power Consumption | 700 W/m² | 700 W/m² | 700 W/m² |
| Avg. Power Consumption | 260 W/m² | 260 W/m² | 260 W/m² |
| Power Input | AC100-240V | AC100-240V | AC100-240V |
| Frame Rate (Hz) | 60 | 60 | 60 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 |
| Gray Scale | 12-14Bit | 12-14Bit | 12-14Bit |
| LED Span (Hrs) | 100,000 | 100,000 | 100,000 |
| Working Temp. | -30~60℃ | -30~60℃ | -30~60℃ |
| Working Humidity | 10%~80% | 10%~80% | 10%~80% |
| Storage Temp. | -20~80℃ | -20~80℃ | -20~80℃ |
