Premium Outdoor Wedding LED Display Screens
Our LED display screens offer superior brightness of up to 4500cd/m². The high refresh rate between 3840Hz and 7680Hz ensures smooth, flicker-free visuals. These features guarantee stunning picture quality even in bright outdoor settings like weddings and concerts.

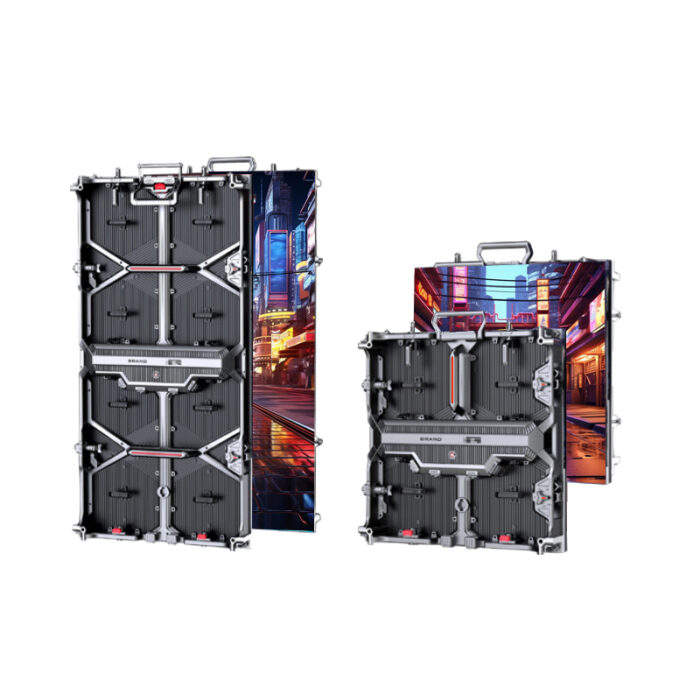

Durable Die-Cast Aluminum Cabinets
We use die-cast aluminum cabinets measuring 500×500mm or 500×1000mm. This material ensures strong protection against weather and physical damage. Cabinets weigh only 7.5kg or 12.5kg for easier handling and installation.
Flexible Splicing and Curved Design Options
Modules sized 250×250mm and 500×250mm allow flexible screen assembly. Our wedding LED screens support standard arc curvatures from -10° to +15°. You can create seamless curved or flat displays tailored to your event’s requirements.
Front and Rear Maintenance for Easy Service
The design supports both front and back maintenance. Quick access to modules and power boxes simplifies repairs. HUB design power boxes speed up maintenance, minimizing downtime during events.
IP65 Waterproof Rating for All-Weather Use
The LED screens feature full IP65 protection. This makes them perfect for outdoor use, resisting rain, dust, and humidity. Your investment remains safe, delivering reliable performance year-round.
Wide Viewing Angles and Certified Safety
With horizontal and vertical viewing angles of 160° and 140°, audiences get consistent image quality from all positions. CE and RoHS certifications ensure compliance with international safety and environmental standards.
Ideal for Outdoor Events and Rental Applications
Our wedding LED display screens adapt perfectly for stages, exhibitions, retail, airports, and rental services. Versatile installation options allow you to mount displays in multiple configurations to fit your venue.
Products Spefication
| Model No. | XRP1.9 | XRP2.6 | XRP2.9 | XRP3.9 | XRPO2.6 | XRPO2.9 | XRPO3.9 |
| Pixel Pitch (mm) | 1.953 | 2.6 | 2.97 | 3.91 | 2.6 | 2.97 | 3.91 |
| Pixel Density (pixels/m²) | 278,784 | 147,456 | 112,896 | 65,536 | 147,456 | 112,896 | 65,536 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module Size (W*H) | 500*250mm | ||||||
| Module Resolution (W*H) | 256*128dots | 192*96dots | 168*84dots | 128*64dots | 192*96dots | 168*84dots | 128*64dots |
| Panel Size (W*H*D) | 500*500*68 / 500*1000*68mm | ||||||
| Panel Resolution (W*H) | 256*256 / 256*512 | 192*192 / 192*384 | 168*168 / 168*336 | 128*128 / 128*256 | 192*192 / 192*384 | 168*168 / 168*336 | 128*128 / 128*256 |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight (kg) | 7.5/12.5 | ||||||
| Input Voltage | AC 100-240V | ||||||
| Brightness (cd/m²) | 900 | 4,000 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||||
| Viewing Angle (H/V) | 140°/140° | ||||||
| Gray Scale (bit) | 13/14 | ||||||
| Refresh Rate (Hz) | 3,840/7,680 | ||||||
| Contrast Ratio | 7,000:1 | 5,000:1 | |||||
| Color Temp (K) | 2,000~10,000 (Adjustable) | ||||||
| Max/Avg Power (W/m²) | 550/175 | 750/250 | |||||
| Serviceability | Front/Rear | ||||||
| IP Rating | IP30 | IP65 | |||||
| Working Life (Hours) | 100,000 | ||||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV/ERP/SAA | ||||||
| Curvature | Standard Arc (-10°/-5°/0°/5°/10°/15°) | ||||||
