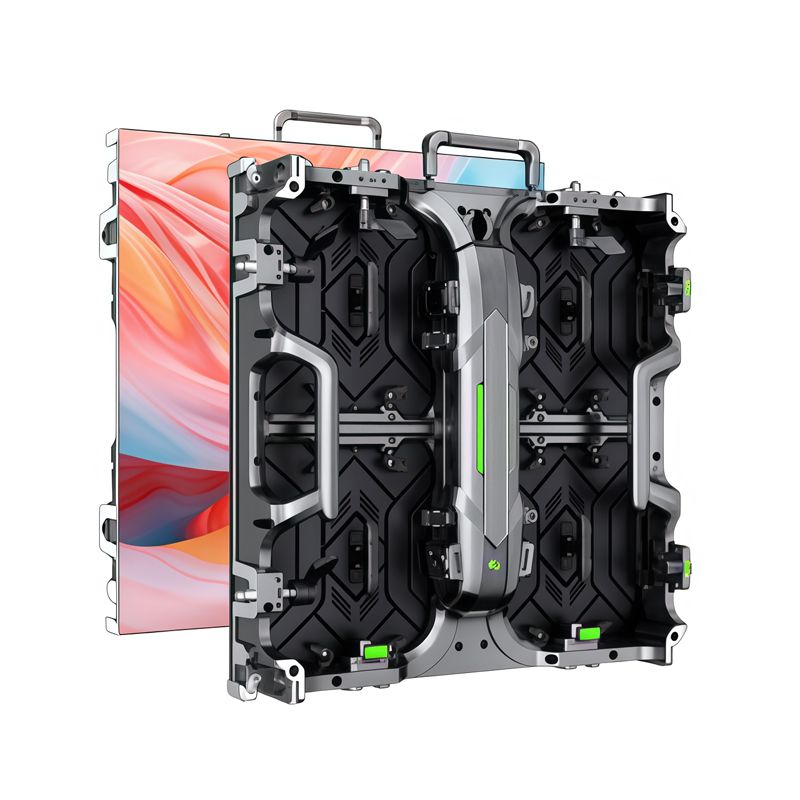

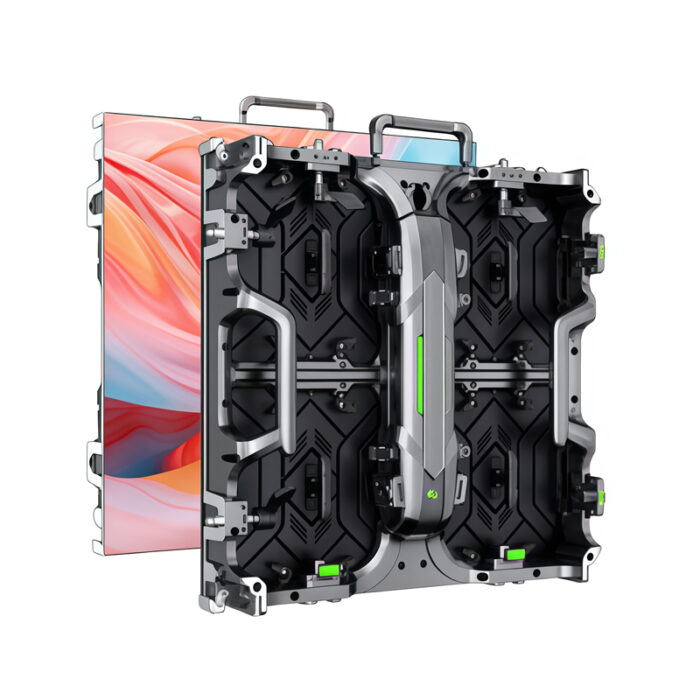

Rental Led Screen Stage 500*500mm High brightness Screen Waterproof Outdoor Led Screen
Feature highlights:Canbest P1.9 P2.6 P3.9 Indoor Outdoor Smart Curved Rental LED Display features a high refresh rate of 3840-7680Hz, die-cast aluminum cabinet for durability, and a brightness of ≥1000nits, (horizontal: 160°, vertical: 140°) ensuring vibrant visuals. Certified by CE and RoHS for compliance with EU safety standards, granting market access. Suitable for exhibitions, retail, airports, and more, with versatile installation options and IP65 protection for outdoor use
High-Quality PCB
Our PCB boards are made using V0-grade materials and have a thickness of 1.6mm.
Outdoor Led Screen with Wide-Viewing Angle
We use surface-mounted lamp beads and ide-angle masks to provide you with an incredibly broad viewing angle.
Flawless Flatness
The surface of our modules is immaculately flat, with no visible imperfections from any viewing angle.
Top-Grade Lamp Beads: All of our lamp beads undergo rigorous industry-standard ultrasonic environmental simulation testing.
Waterproof and Protected
Our PCB lamp bead surfaces are filled with high-quality waterproof
sealing silicone, and the lC surfaces are protected with premium three-proof paint
Products Spefication
| Model | XRD1.9 | XRD2.6 | XRD2.9 | XRD3.9 | XRDO2.6 | XRDO2.9 | XRDO3.9 |
| Pixel Pitch(mm) | 1.953 | 2.6 | 2.97 | 3.91 | 2.6 | 2.97 | 3.91 |
| Pixel Density(pixels/㎡) | 278,784 | 147,456 | 112,896 | 65,536 | 147,456 | 112,896 | 65,536 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module Size(W*H) | 250*250mm | ||||||
| Module Resolution(W*H) | 128*128 dots | 96*96 dots | 84*84 dots | 64*64 dots | 96*96 dots | 84*84 dots | 64*64 dots |
| Panel Size(W*H*D) | 500*500*68/500*1000*68mm | ||||||
| Panel Resolution(W*H) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight(kg) | 7.5kg/12.5kg | ||||||
| Input Voltage | AC 100-240V | ||||||
| Brightness(cd/㎡) | 900 | 4000 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||||
| Viewing Angle(H/V) | 140°/140° | ||||||
| Gray Scale(bit) | 13/14 | ||||||
| Refresh Rate(Hz) | 3840/7680 | ||||||
| Contrast Ratio | 7000:1 | 5000:1 | |||||
| Color Temperature(K) | 2000-10000 (Adjustable) | ||||||
| Power Consumption(W/㎡) | 550/150 Max/Avg | 700/200 Max/Avg | |||||
| Serviceability | Front/Rear | ||||||
| IP Rating | IP30 | IP65 | |||||
| Working Life(Hours) | 100,000 | ||||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV/ERP/SAA | ||||||
| Curvature | Standard Arc ﹣15°/﹣10°/﹣5°/0°/5°/10°/15° | ||||||
