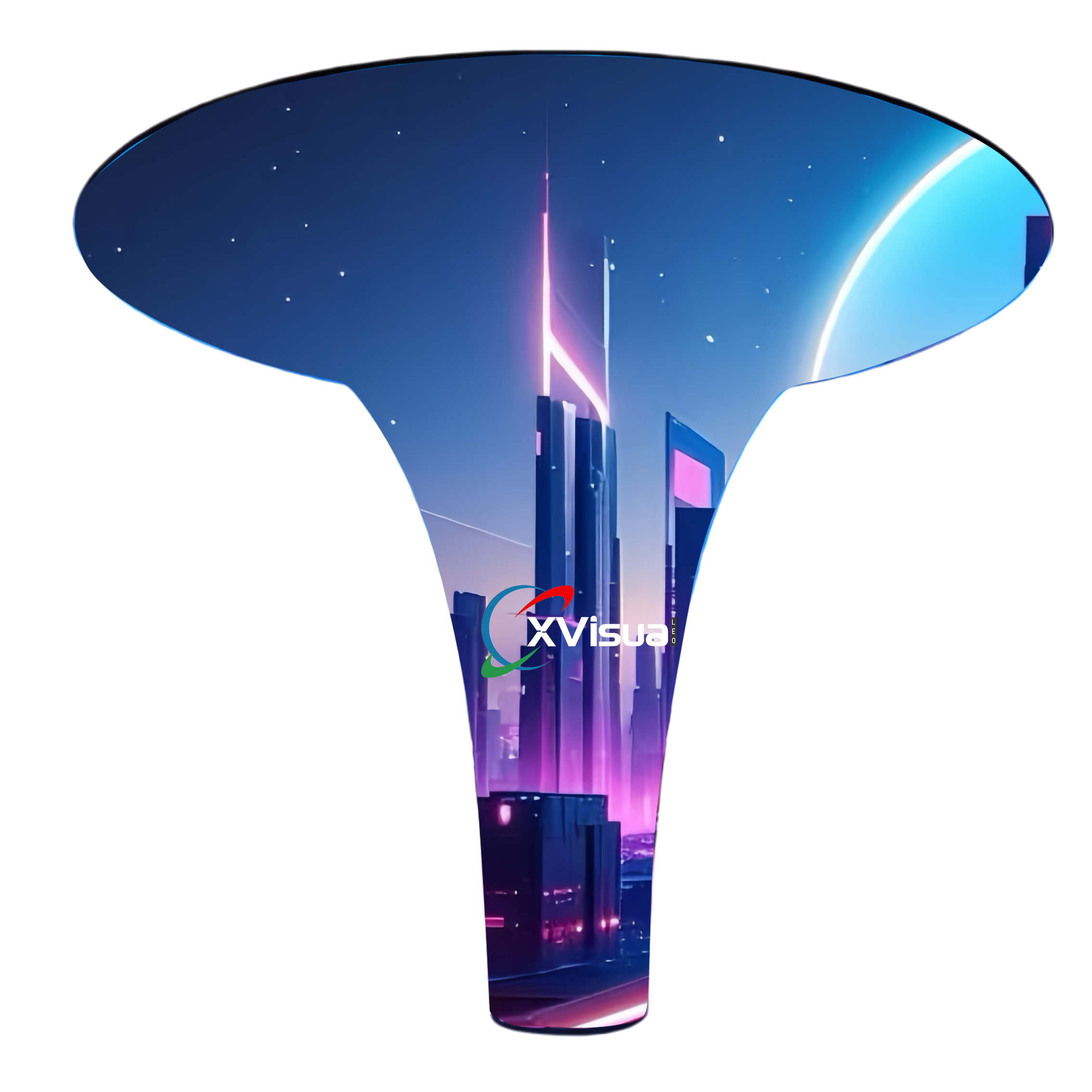

Tree LED screen is a unique creative LED display product whose structural design presents tree-like branches, and this structure has a sense of hierarchy, three-dimensionality and rich visual effects, which brings a unique visual experience to the audience. With its unique structure, rich visual effects and excellent display performance, it has become a major innovative highlight in the field of LED display
Продукты Speffication
| ITEM | HD SPHERICALLED SCREEN | ||||||||||
| Product model | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel pitch | 1.25мм | 1.53мм | 1.86мм | 2мм | 25мм | 3мм | 4мм | 5мм | 6мм | 8мм | 10мм |
| Physical density | 640000 dots/m | 422500 dots/m³ | 289050 dots/m’ | 250000 dots/m² | 160000 dots/m² | 111111 dots/m² | 62500 dots/m² | 40000 dots/m² | 27777 | 15625 | 10000 dots/m² |
| dots/m² | dots/m² | ||||||||||
| LED Package | SMD808 | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 SMD1515 | SMD2020 SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Module size | Custom size | ||||||||||
| Module weight | 0.2 кг | ||||||||||
| Interface definition | HUB-16P | ||||||||||
| Spherical screen size | 02m,0.4m 0.8m, 1m,1.2m, 1.5m,1.8m2m,2.5m,3m,4m,5m-Any size | ||||||||||
| Cabinet weight | 25kg/m² | ||||||||||
| Яркость | 700-8000cd/m² | ||||||||||
| Power consumption | Max: 800W/ Average: <400W/m² | ||||||||||
| Refresh rate | ≥3840Hz | ||||||||||
| Viewing angje level | H: > 160°Optional, V: > 120°Optional | ||||||||||
| Viewing distance | 1-20m | 1-25m | 2-30m | 2-40m | 2.5-40m | 3-50m | 4-60m | 5-70m | 6-80m | 8-100m | 10-120m |
| Temperature | Working:-25℃~60℃, Storage: -35℃~80℃ | ||||||||||
| Hurridity | 10%-90% | ||||||||||
| Working voltage | Input: AC 100V-240V, 50Hz/60Hz, Output DC 5V | ||||||||||

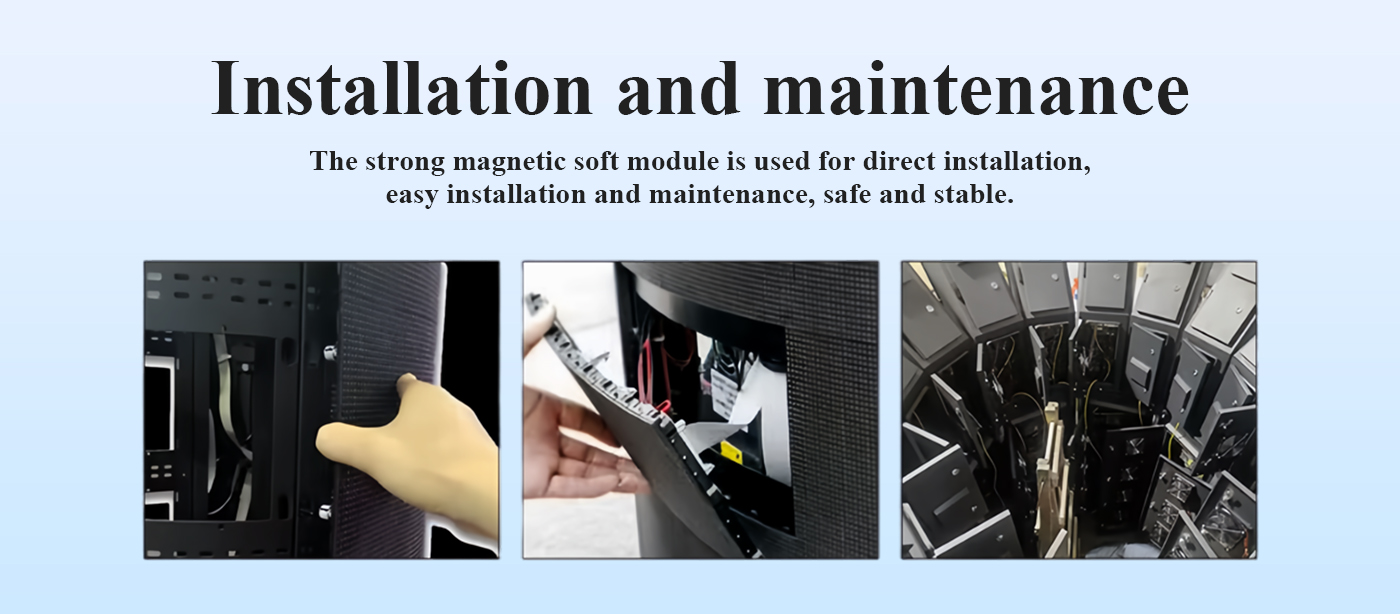

| Maintenance method | Front maintenance | ||||||||||
| Ingress Protection | Indoor (Передний: IP35, Back: IP45) /Outdoor (Передний: IP65, Back: IP54) | ||||||||||
