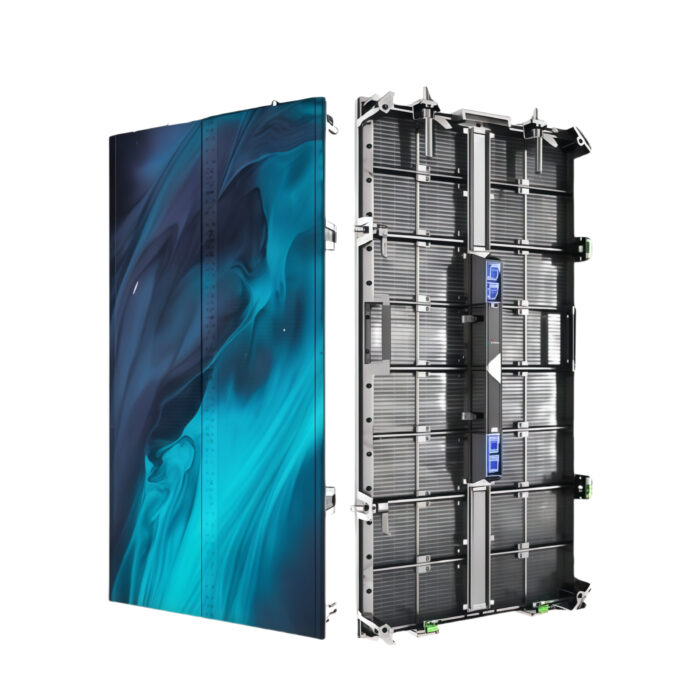

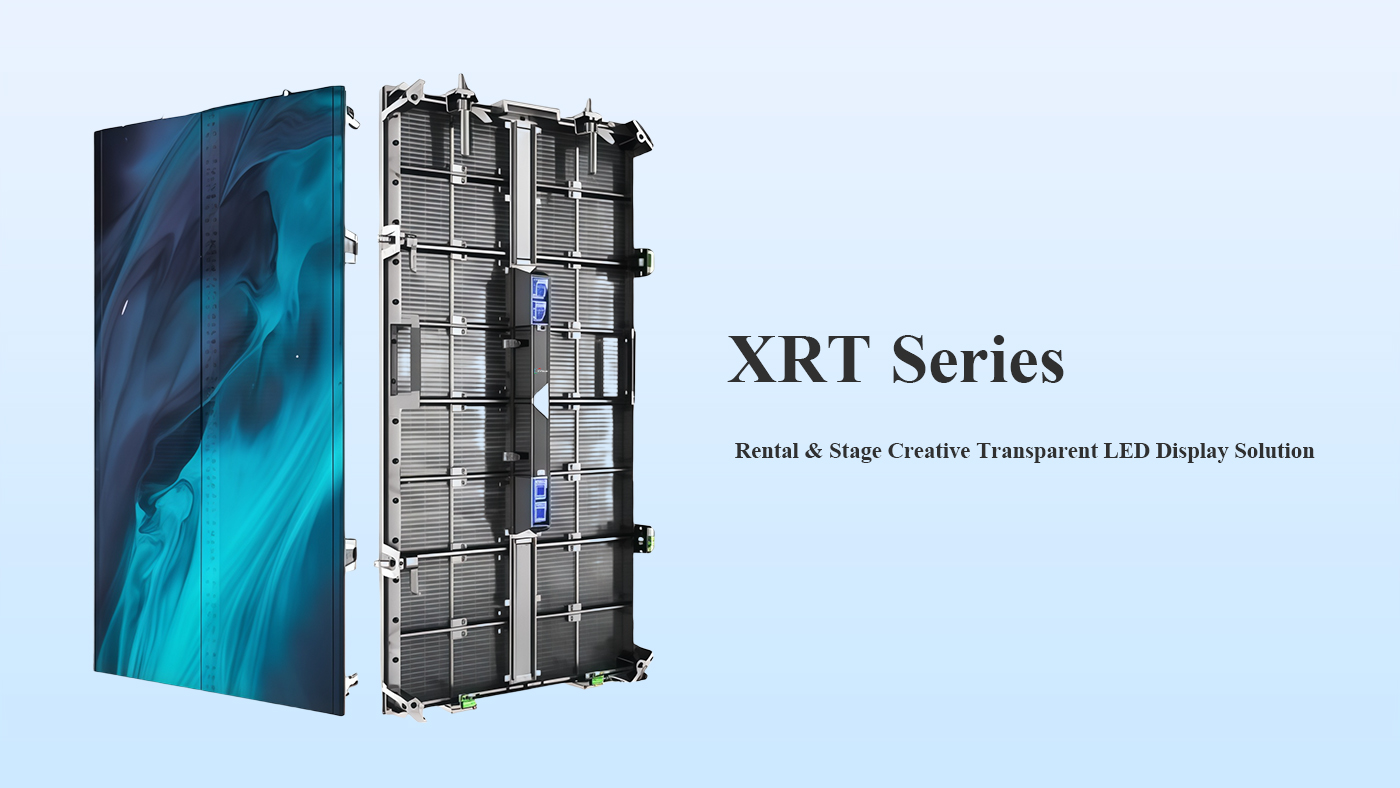

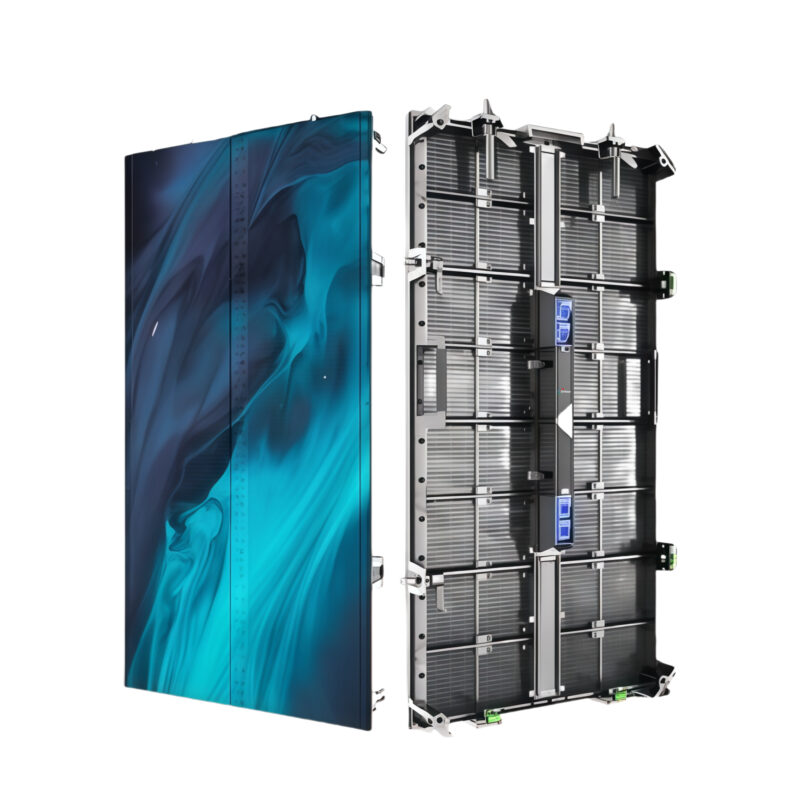

Ultra-Thin P3.9 P7.8 500*1000mm Transparent LED Screen Display Wholesale for Glass Window Wall
Transparent LED Screen Display with Multiple Options of installation

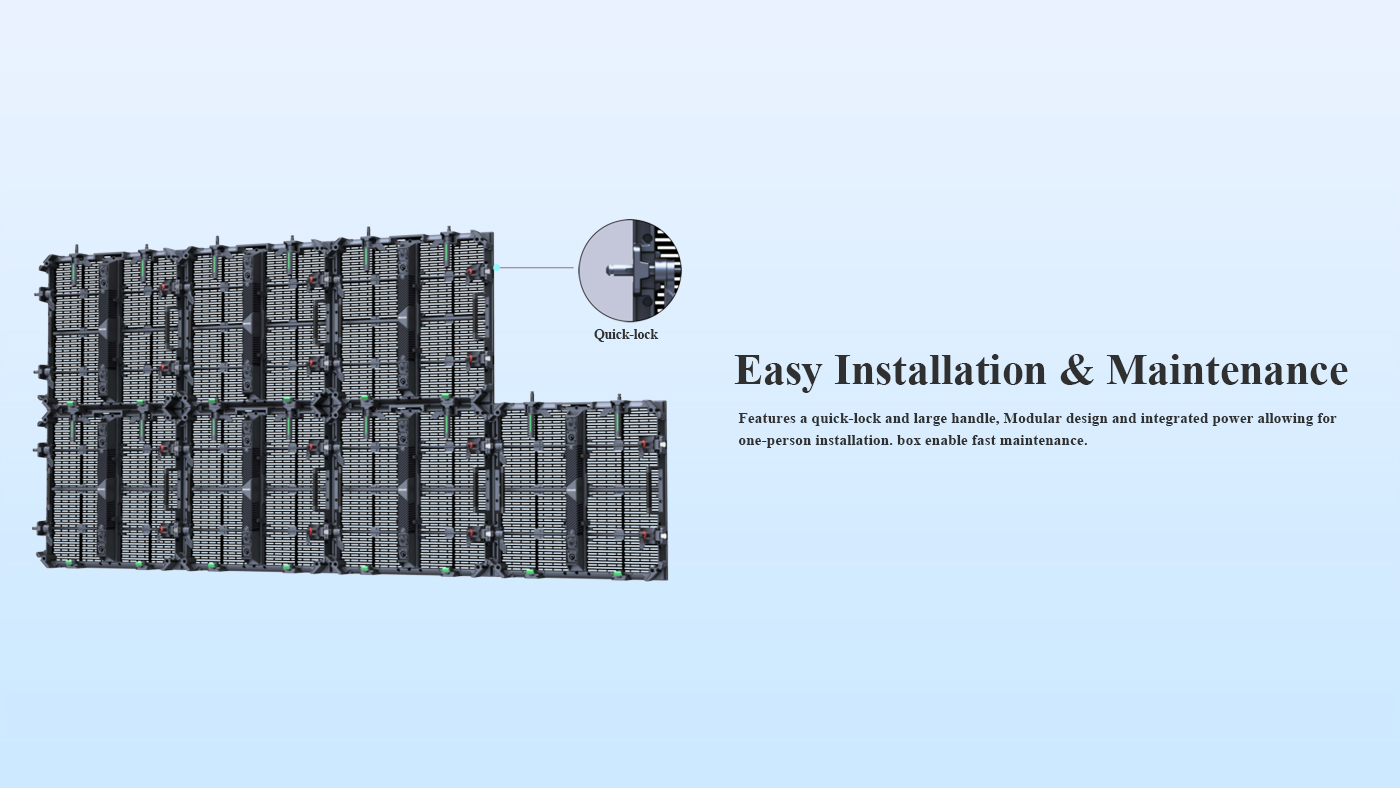

Stacking instalation: Ground stacking makes your instalaton easier and faster during the events. Hanging instalation: The hanging bar can hang the cabiets from trus. The light weiaht of the cabinet will reduce the physical pressure of the frame.
Transparent LED Screen Display with High Protection IP65
All exposed materials are waterproof and UV resistant.Our outdoor connivers are plugged in from bottom to top of the power box , which make more waterproof.

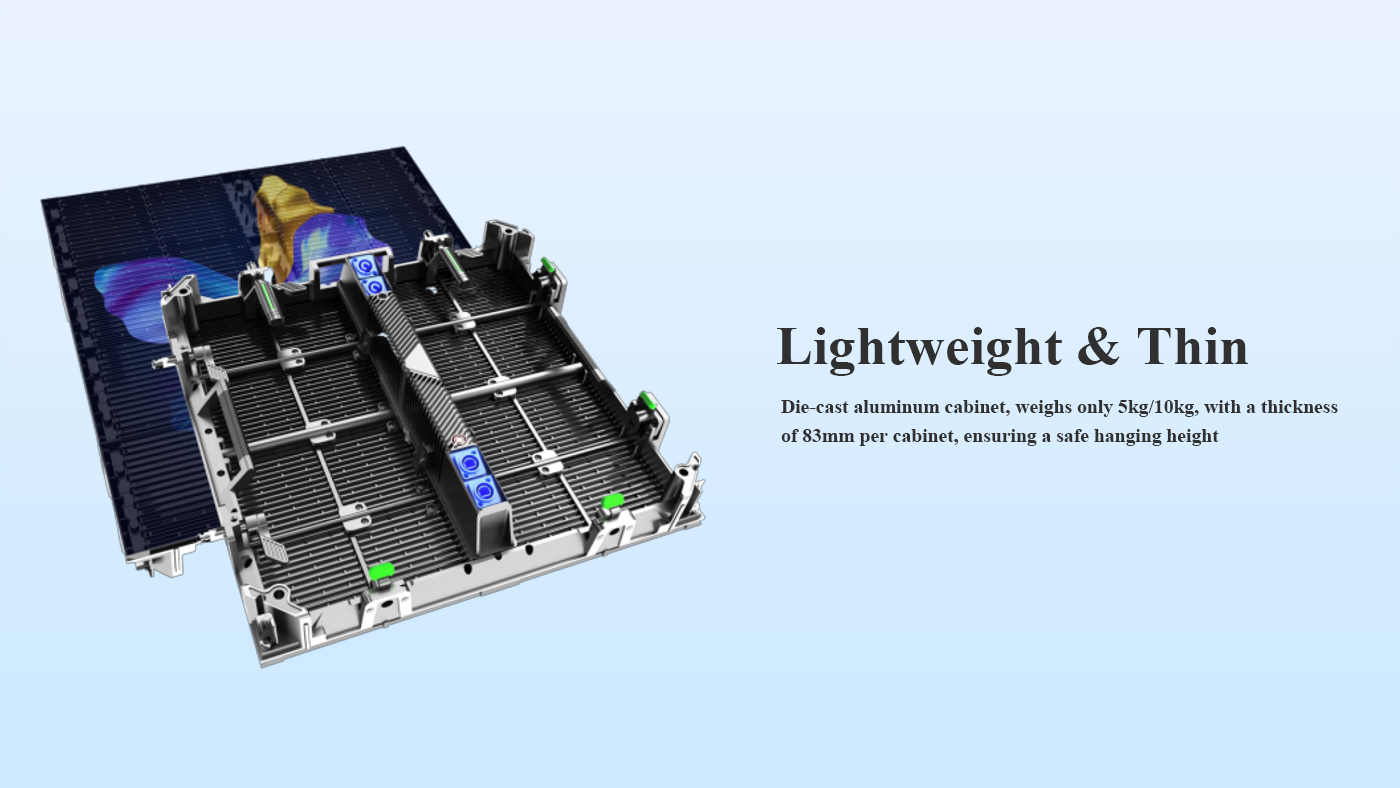

Transparent LED Screen Display with Light and Thin
greatly reduces the stress during transportation and instalation.

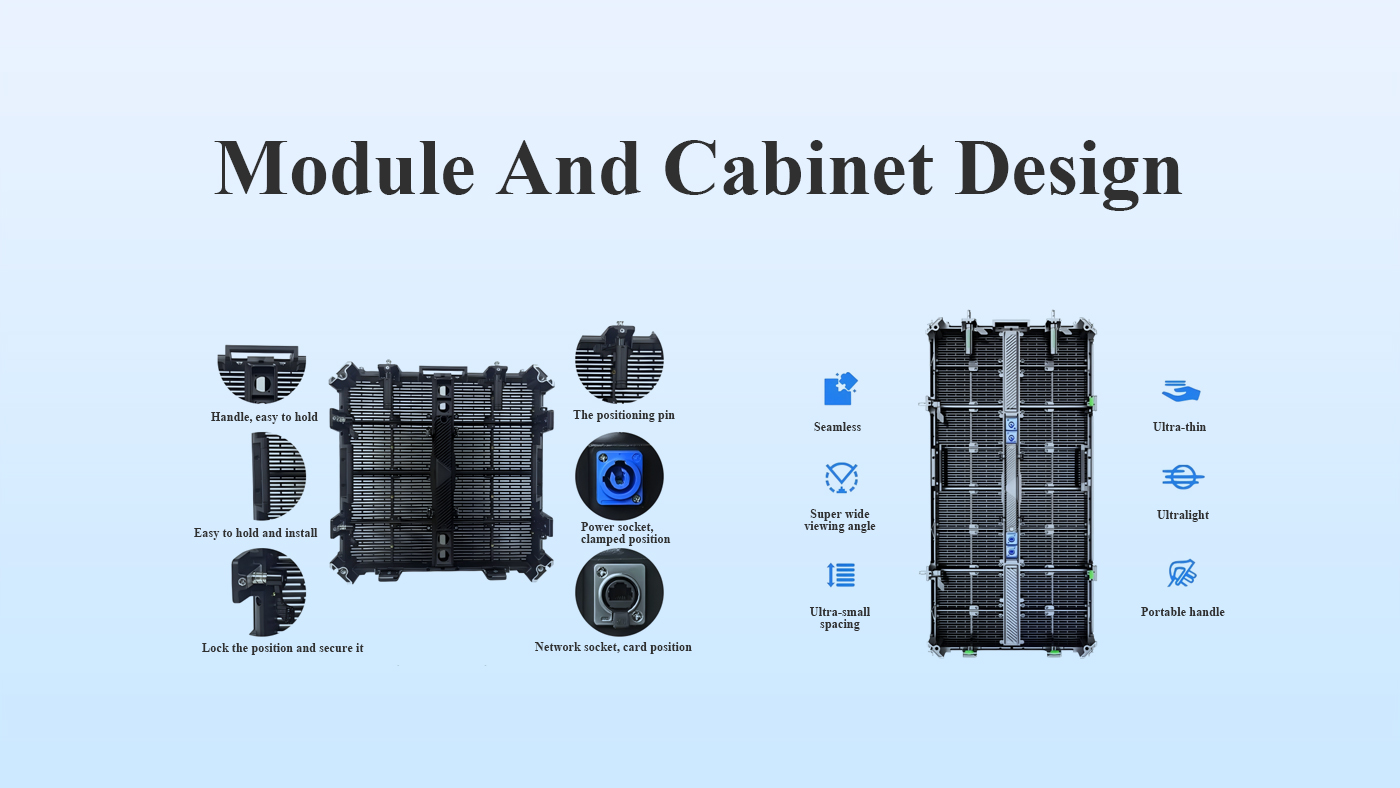

Cabinet size: 500mm*500mm*75mm 500mm1000mm*75mm
The cabinet material is dile-cast aluminum, which is ligher and has hicher overallprecision, Thickness ofthe cabietis only 75mm and the weightis less than 19kaslsam which
Pixel pitch P3.9-P7.8 is available.
Transparent LED Screen Display with Excellent Heat Dissipation
Die-casting aluminum cabinet.The cabinet is used wth wind.pass design. As aresu, even without fans and air condioners ,the screen can stllwork propery inthe high temperature environment of 60″
Продукты Speffication
| Модель | XRT3.9 | XRT-P3.9 | XRTO3.9 | XRT-PO3.9 |
| Пиксельный шаг(мм) | 3.9-7.8 | |||
| Плотность пикселей(пиксели/㎡) | 32,768 | |||
| Светодиодный тип | SMD2020 | SMD1921 | ||
| Размер модуля(W*H.) | 500*125мм | |||
| Разрешение модуля(W*H.) | 128*16 точки | |||
| Размер панели(W*h*d) | 500*500*83/500*1000*83мм | |||
| Разрешение панели(W*H.) | 128*64 | 128*128 | 128*64 | 128*128 |
| Панельный материал | Алюминий-хит | |||
| Вес панели(кг) | 5kg/10kg | |||
| Входное напряжение | AC 100-240V | |||
| Яркость(CD/㎡) | 1000 | 4500 | ||
| Регулировка яркости | Программируемый/автоматический/ручной | |||
| Угол просмотра(H/V.) | 140°/140 ° | |||
| Серая шкала(кусочек) | 13/14 | |||
| Обновление частоты(Гц) | 3840/7680 | |||
| Соотношение контрастности | 5000:1 | 4000:1 | ||
| Цветовая температура(K) | 2000-10000 (Регулируемый) | |||
| Энергопотребление(W/㎡) | 550/175 Макс/Avg | 750/250 | ||
| Полезность | Спереди/сзади | |||
| IP -рейтинг | IP40/IP21 | IP65 | ||
| Трудовая жизнь(Часы) | 100,000 | |||
| Сертификаты | CB/EMC/LVD/ETL/FCC/TUV/ERP/SAA | |||
| Кривизна | Standard Arc ±15 | |||
