Indoor outdoor 500*500 High quality Curved Large rental led screen display

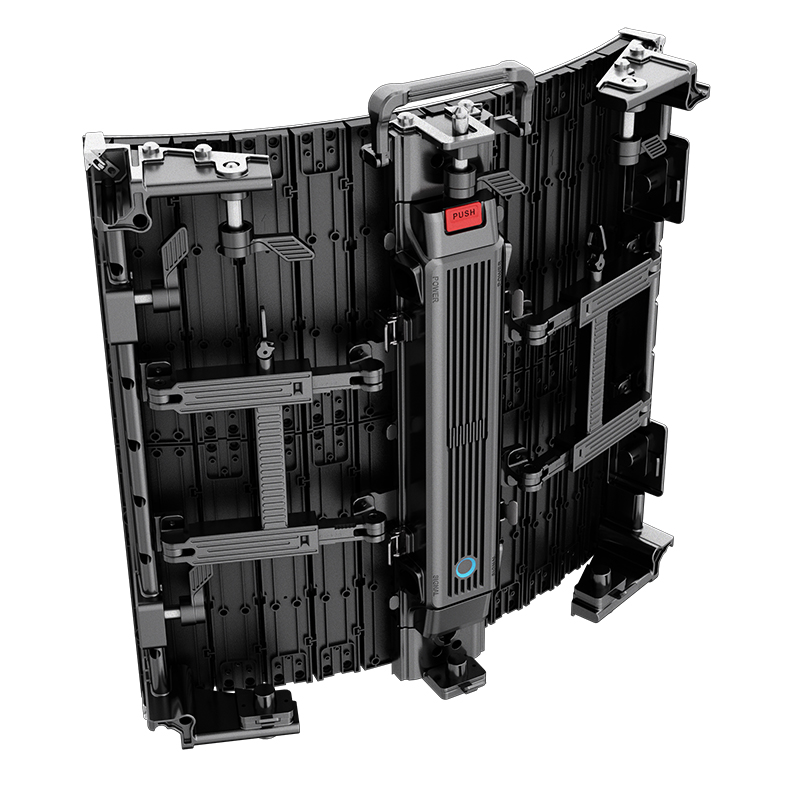

Large rental led screen display with Lightweight But Durable
Die casting aluminum 500*500mm and 500*1000mm panel with 7.0Kg and13.5Kg individually, easy to handle for setup and operation
Fast Locking System, Quick Assembly and Disassembly
The copper series features a fast locking system with an instant feedback mechanism and magnet! on the top and bottom of the modulars,allowing the operator to set up quickly
Corner Protection Design
The copper series incorporate Corner Protection Design on each panel corner, thereby reducing pixel damagduring manual operations and transportation
Large rental led screen display with Seamless Splicing
The seamless splicing advantage of LED rental screens is that they can achieve perfect splicing between screens, eliminating the splicing gaps, thereby providing a higher quality viewing experience. They can present truly stunning picture effects and are suitable for large-scale indoor and outdoor advertising.
Products Spefication
| Model | XRM1.9 | XRM2.6 | XRM2.9 | XRM3.9 | XRMO2.6 | XRMO2.9 | XRMO3.9 |
| Pixel Pitch(mm) | 1.953 | 2.6 | 2.97 | 3.91 | 2.6 | 2.97 | 3.91 |
| Pixel Density(pixels/㎡) | 278,784 | 147,456 | 112,896 | 65,536 | 147,456 | 112,896 | 65,536 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module Size(W*H) | 250*250mm | ||||||
| Module Resolution(W*H) | 128*128 dots | 96*96 dots | 84*84 dots | 64*64 dots | 96*96 dots | 84*84 dots | 64*64 dots |
| Panel Size(W*H*D) | 500*500*68/500*1000*68mm | ||||||
| Panel Resolution(W*H) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight(kg) | 7.5kg/12.5kg | ||||||
| Input Voltage | AC 100-240V | ||||||
| Brightness(cd/㎡) | 900 | 4000 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||||
| Viewing Angle(H/V) | 140°/140° | ||||||
| Gray Scale(bit) | 13/14 | ||||||
| Refresh Rate(Hz) | 3840/7680 | ||||||
| Contrast Ratio | 7000:1 | 5000:1 | |||||
| Color Temperature(K) | 2000-10000 (Adjustable) | ||||||
| Power Consumption(W/㎡) | 550/150 Max/Avg | 700/200 Max/Avg | |||||
| Serviceability | Front/Rear | ||||||
| IP Rating | IP30 | IP65 | |||||
| Working Life(Hours) | 100,000 | ||||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV/ERP/SAA | ||||||
| Curvature | Standard Arc ﹣15°/﹣10°/﹣5°/0°/5°/10°/15° | ||||||
